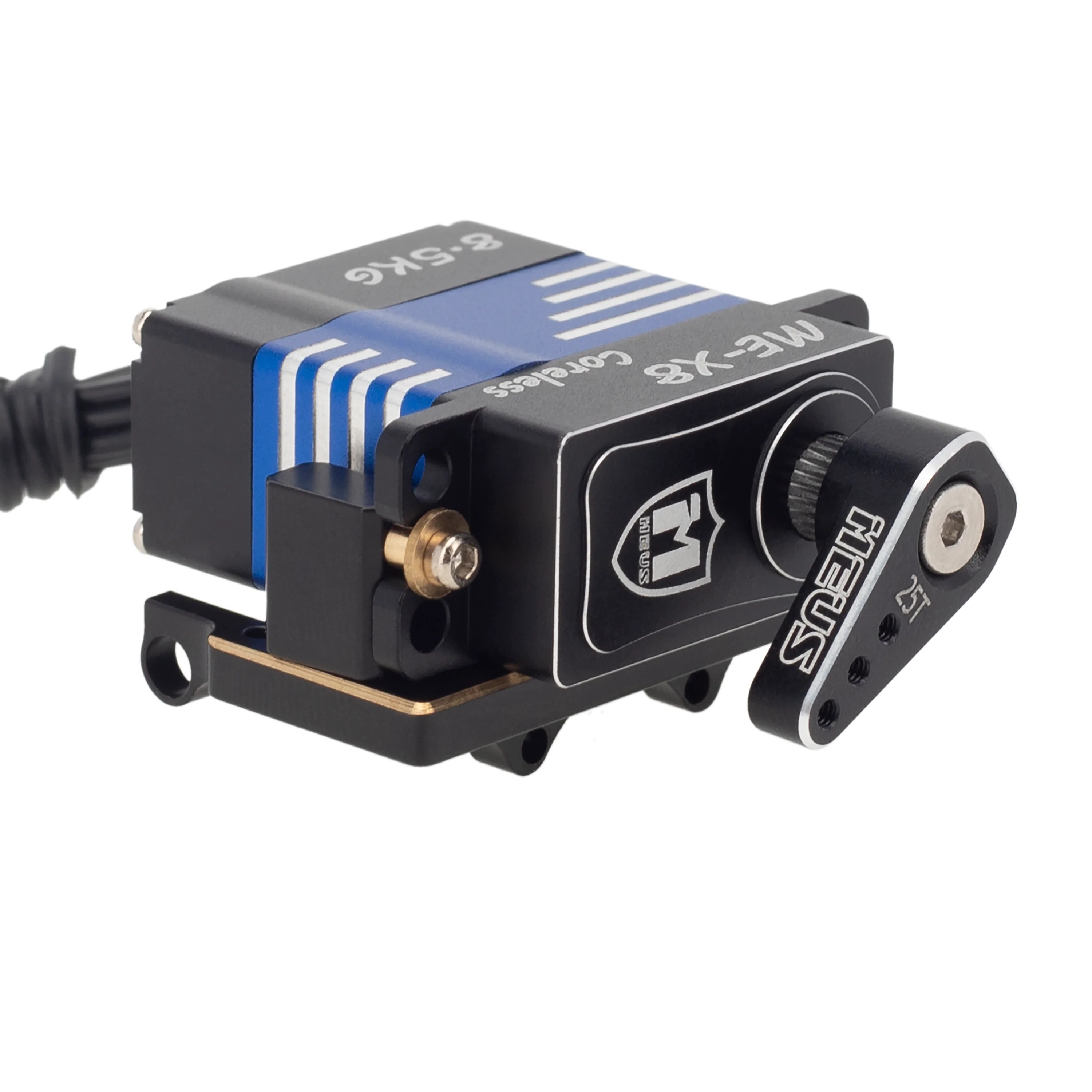

MEUS Racing Digital High-Torque Coreless Micro Servo with Adjustable Brass Servo Mount+Steering Horn for SCX24 C10 JLU Bronco

Key Features

• 1. High precision metal gear coreless servo, provides high torque, high sensitivity, stability, and low noise.

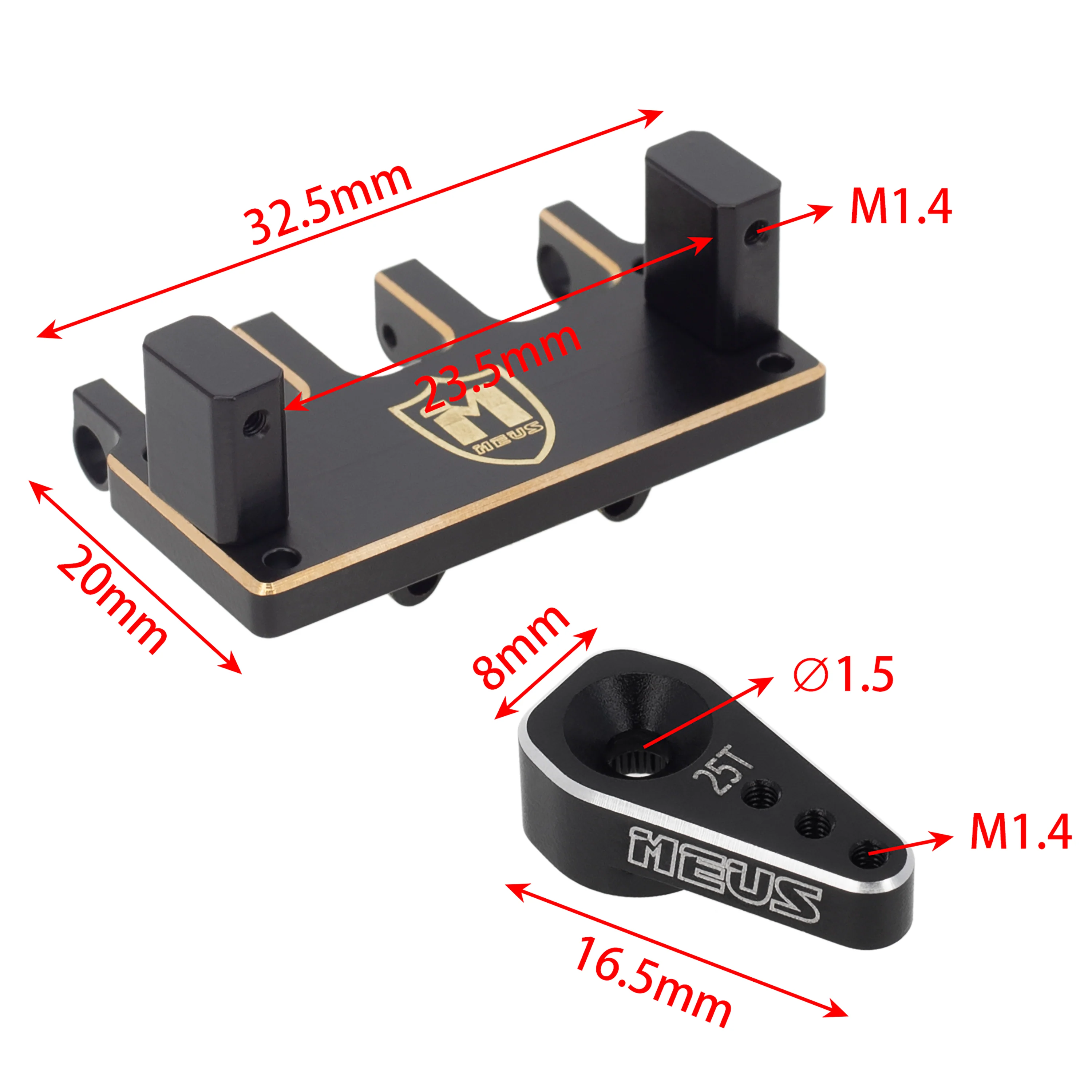

• 2. Brass servo machine bracket to add weight to the front axle. By adjusting the servo mounting ears, the mounting distance 3.5MM & 7MM adjustment can be realized
• 3. Support to install 8 linkages or triangle type linkage.

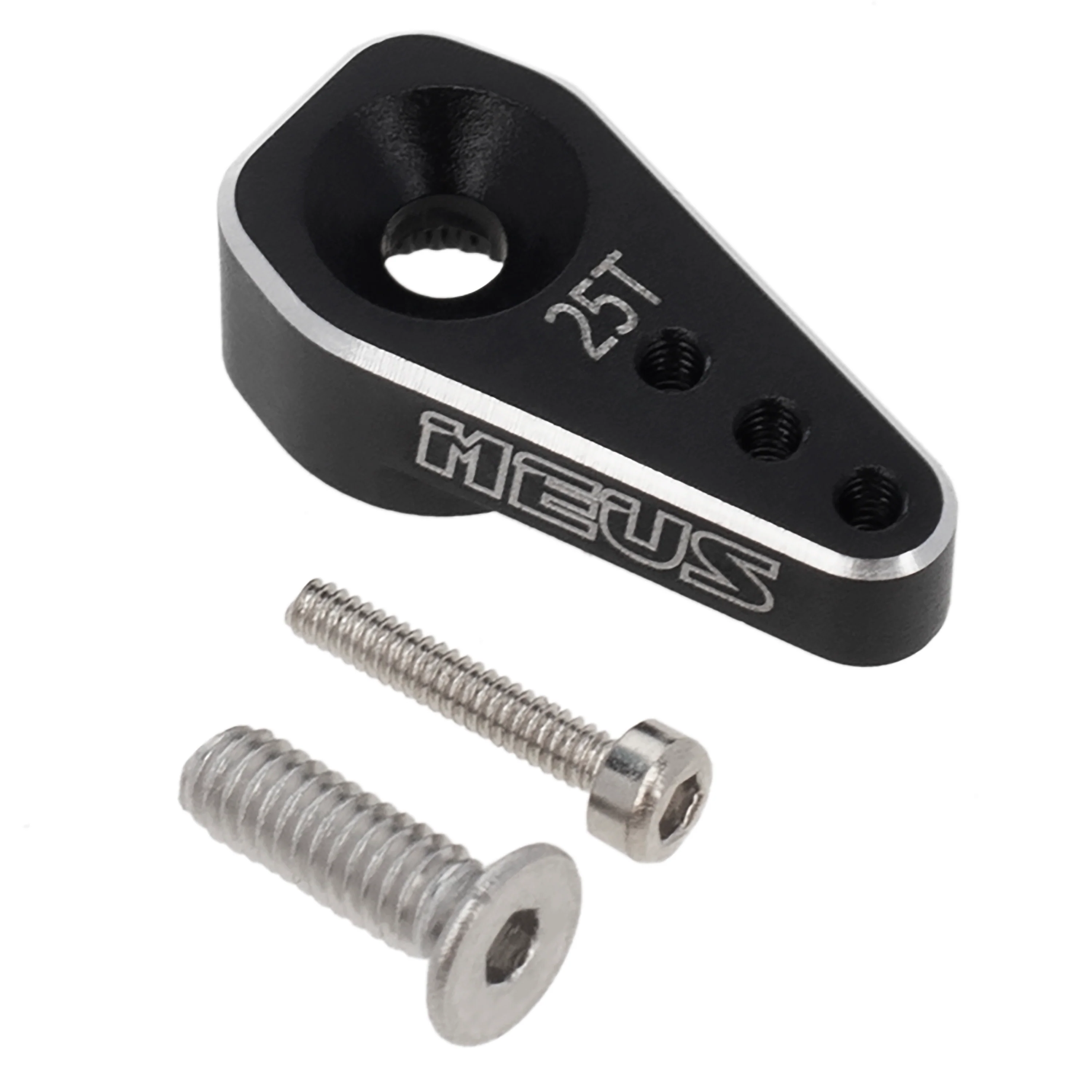

• 4. Aluminum alloy servo horn, sturdy and durable.

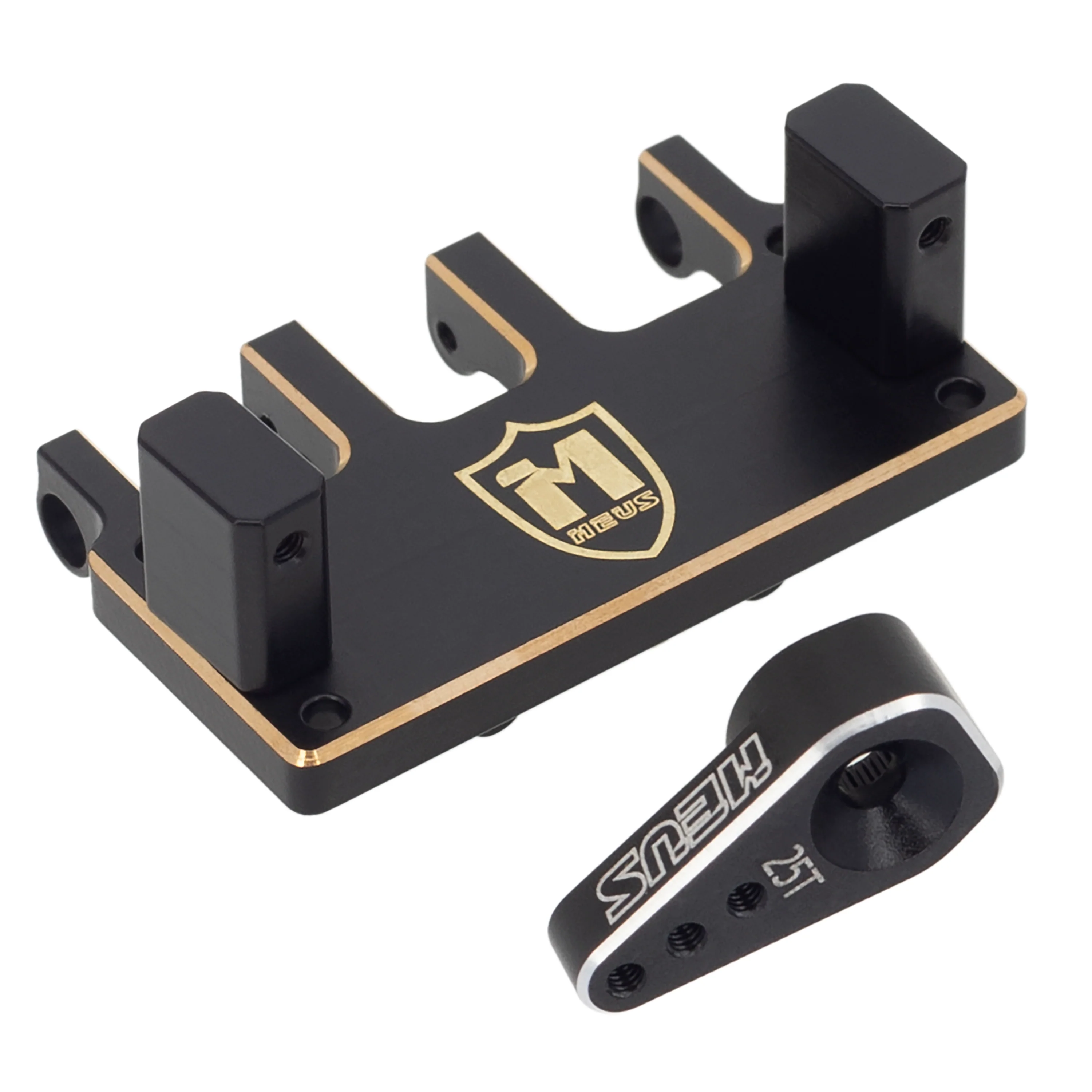

• 6. The servo mount is made of brass, CNC machined, and has an anodized black treatment, exquisite and durable.
• 7. Can install 4 links and triangle-type links.
• 8. Adjustable servo forward and backward movement spacing, adjustable 3.5MM & 7MM, and equipped with an aluminum alloy servo horn, suitable for high torque servos.
• 9. Suitable for SCX24 C10 JLU Bronco Axial 1/24 RC Crawler Car.

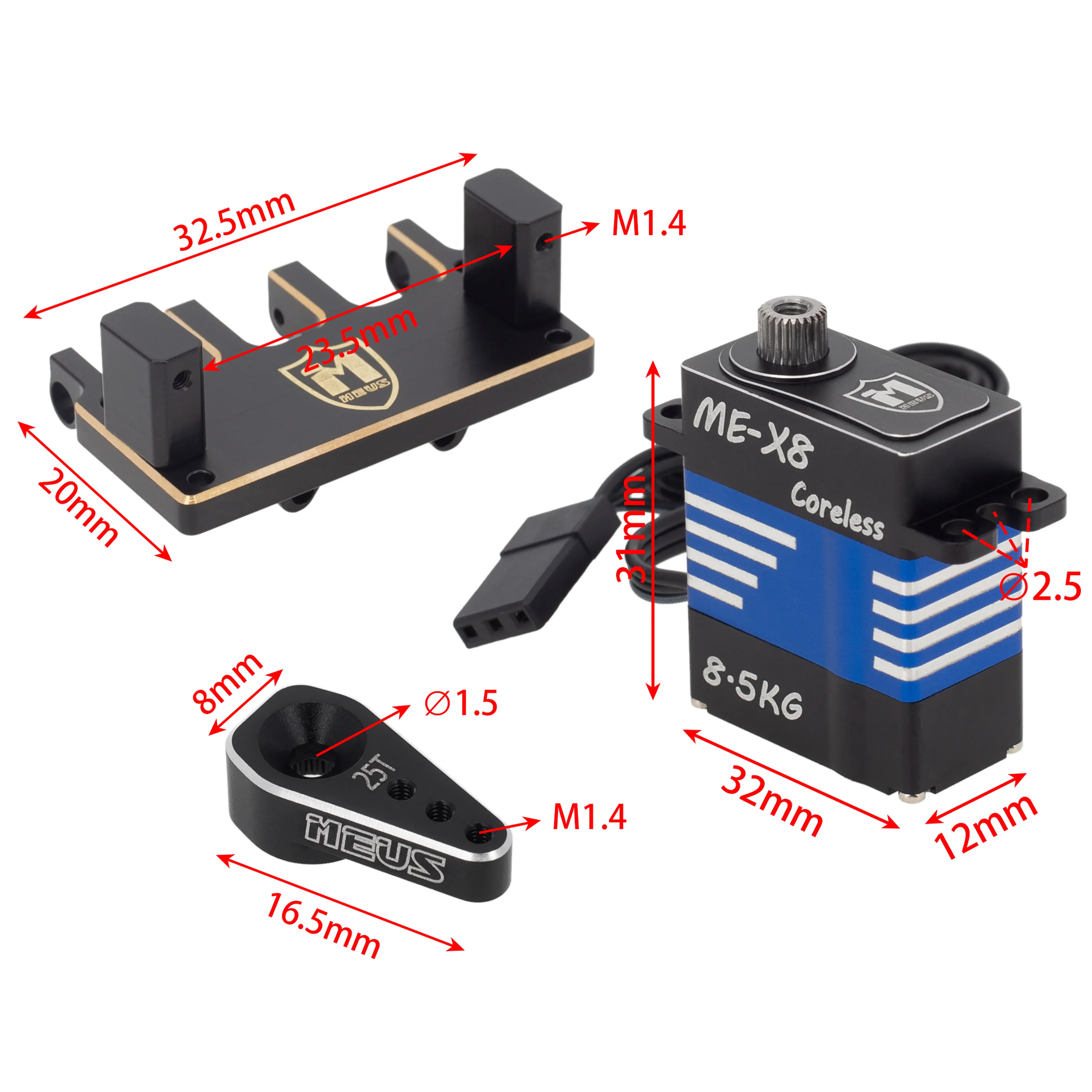

Specifications:

• Product Number: ME-X8
• Operating Voltage: 4.8~8.4VDC
• Max. Torque-6.0V: ≥ 6 kg.cm
• Max. Torque-7.4V: ≥ 7.5 kg.cm
• Max. Torque-8.4V: ≥8.5 kg.cm
• No Load Speed-6.0V: ≦0.07sec/60°
• No Load Speed-7.4V: ≦0.06sec/60°
• No Load Speed-8.4V: ≦0.058sec/60°
• Operating Travel Angle: 90°+10°(500~2500 us)
• Motor Type: Coreless motor
• Horn Gear Spline: 25T/∅4.90mm
• Gear Set Material: Metal gear
• Weight：21.6+ 0.5g
• Size：23*12*27mm

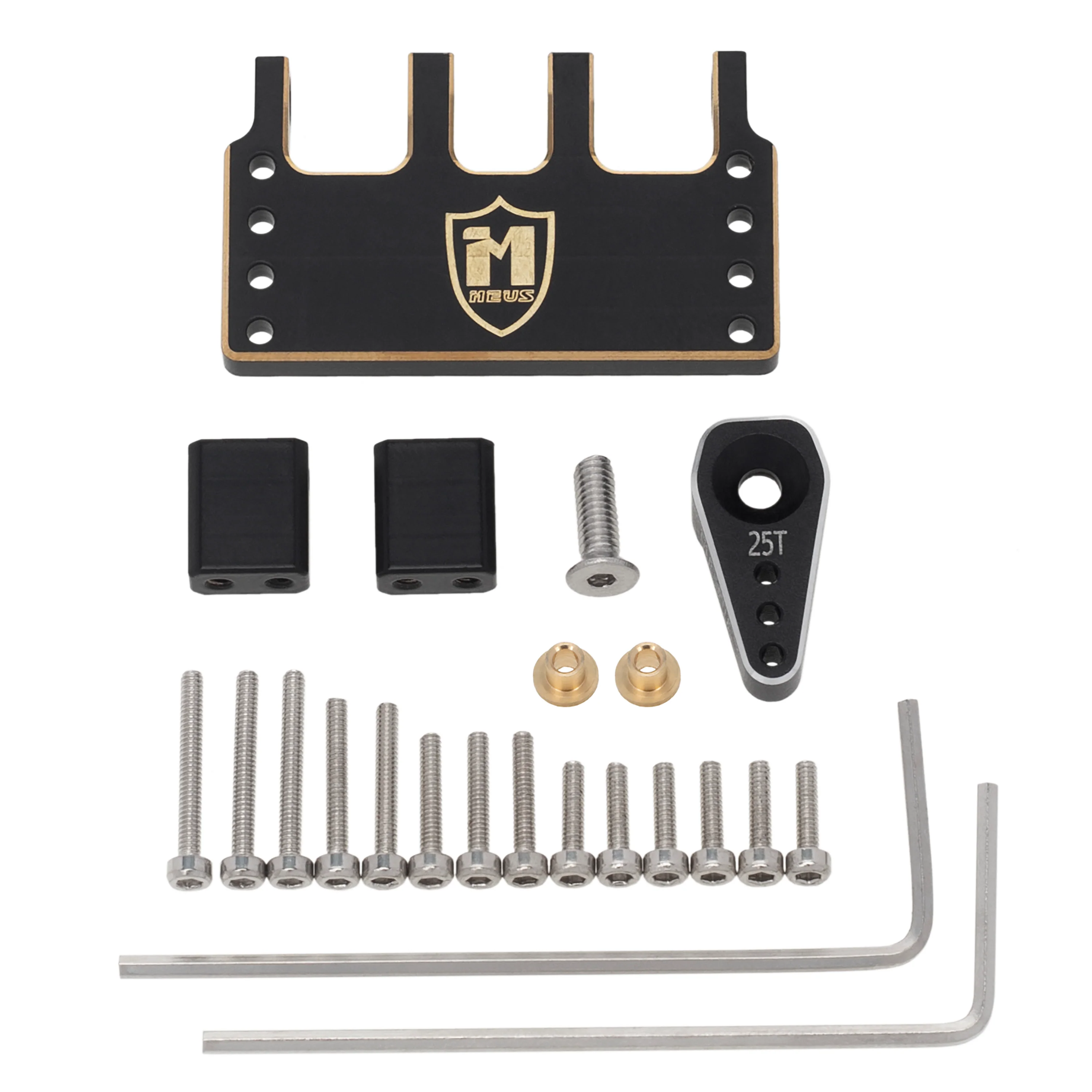

Package List

• 1 × 8.5KG Servo;
• 1 × Servo horn;
• 1 × Brass servo mount;
• 1 × Screws set.
