MEUS Racing Isokinetic 3-Section CVD Shafts for MEUS Capra 1.9 UTB Isokinetic Front Axles

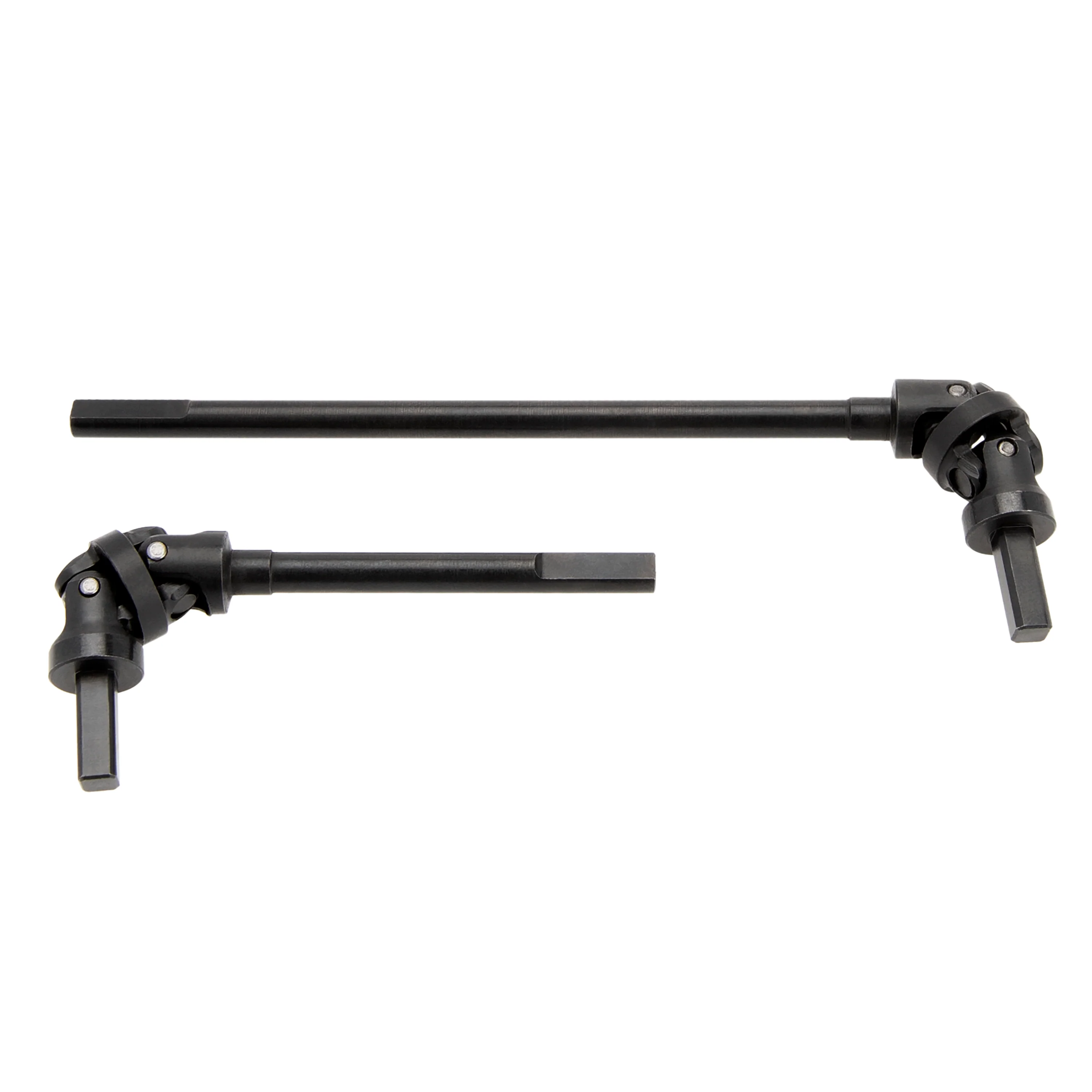

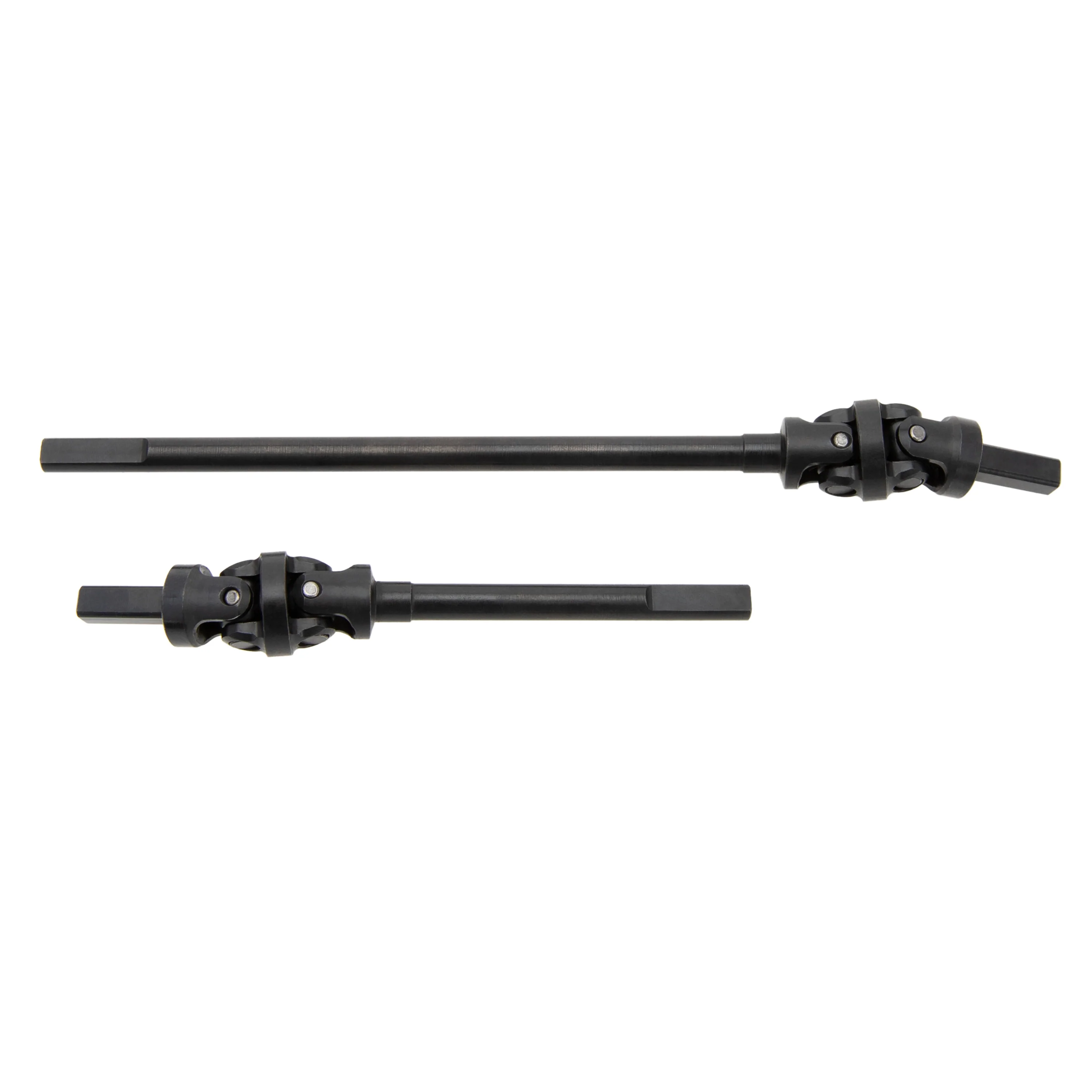

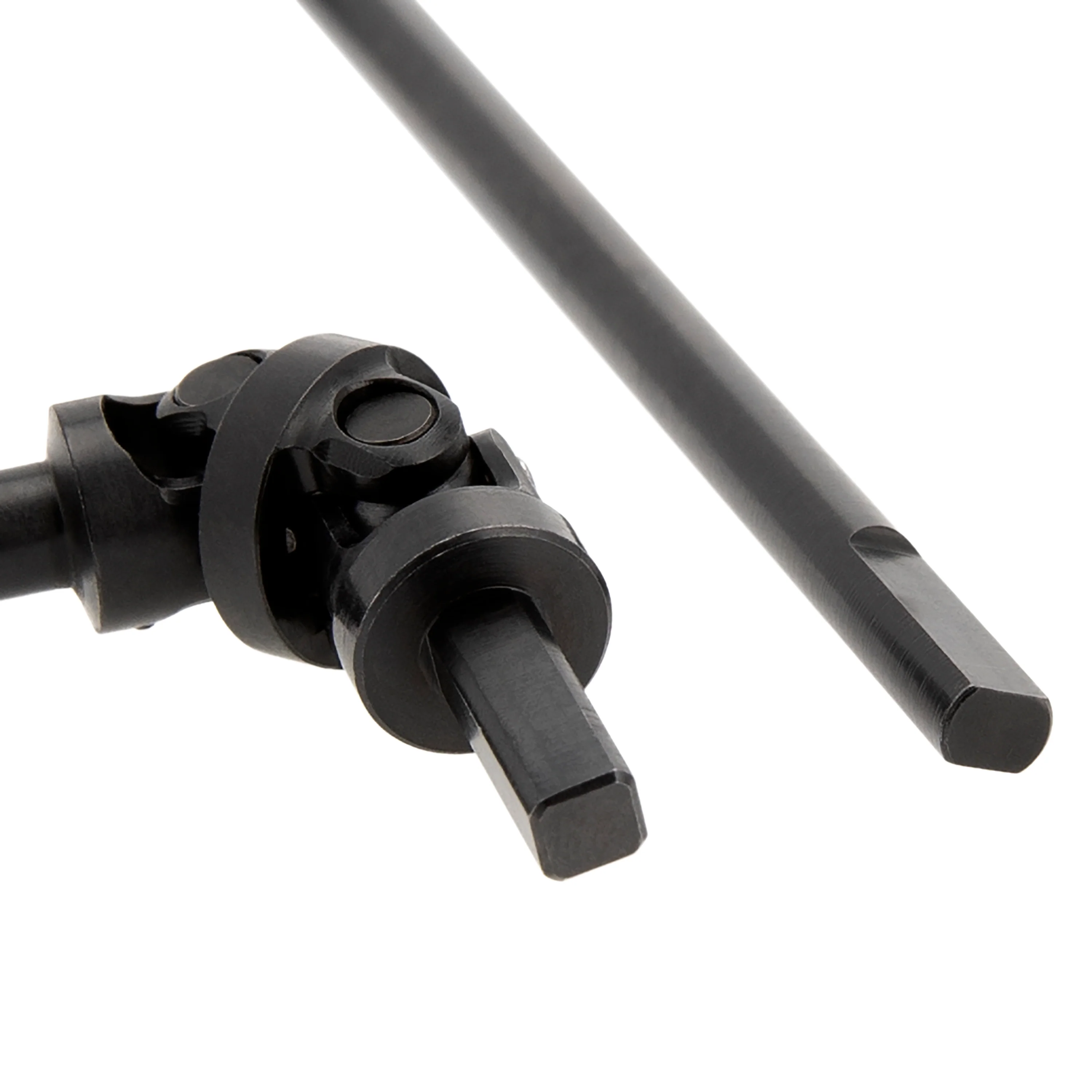

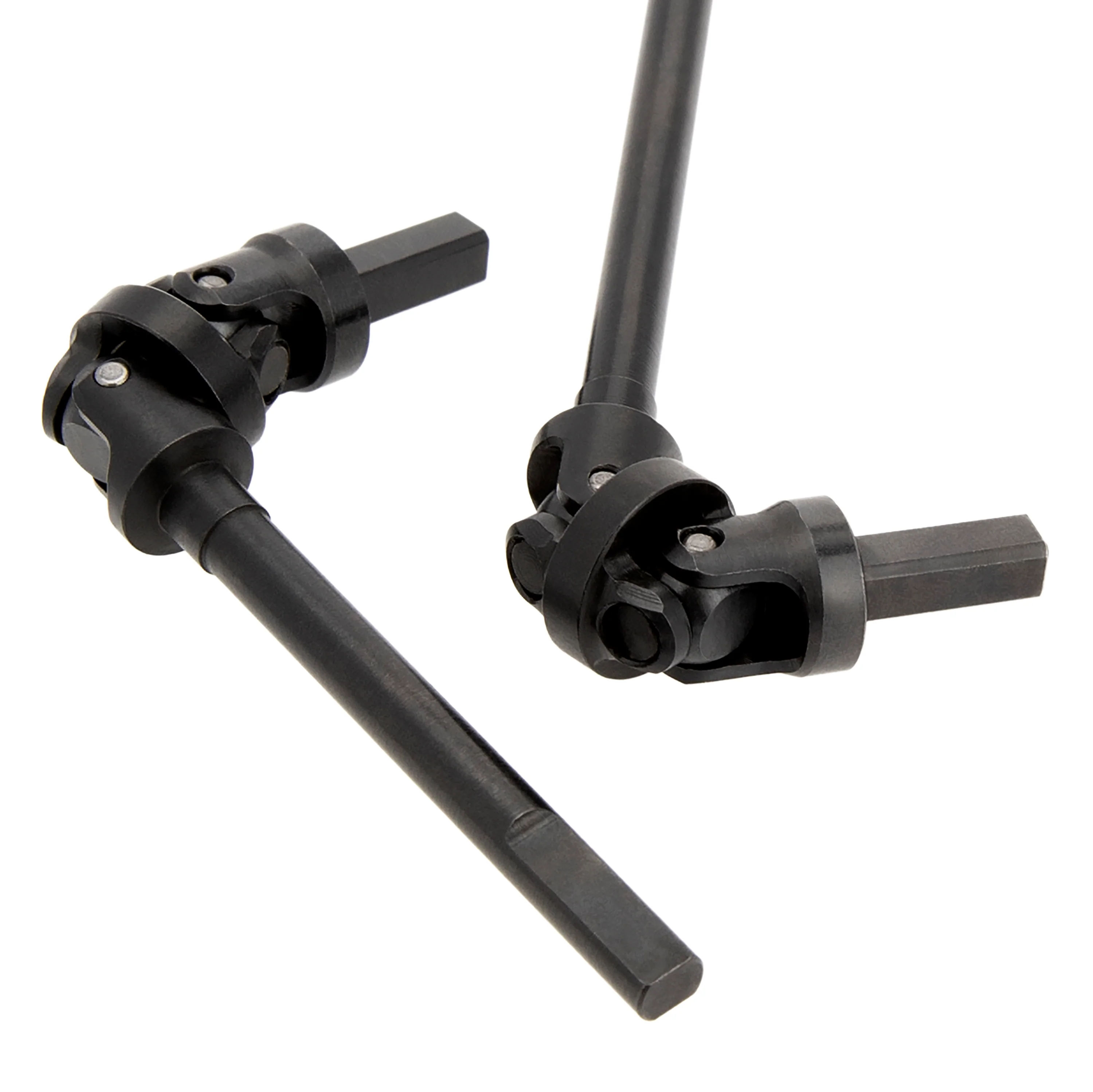

This is a MEUS Racing Isokinetic 3-section CVD Drive Shaft, which can be installed and used in MEUS RACING car axles for Capra 1.9 UTB 1/10 scale car models.

Note: If your axle has an "II" or "一" logo, please buy the V2 version CVD.

Key Features:

• This is a MEUS Racing Isokinetic 3-section CVD axle shaft installed inside the car axles for Capra 1.9 UTB 1:10 scale car models.

• - The Isokinetic 3-section CVD structure is designed for smooth transmission and reduces jerks while turning at a large angle, providing a better driveline system for RC car models.

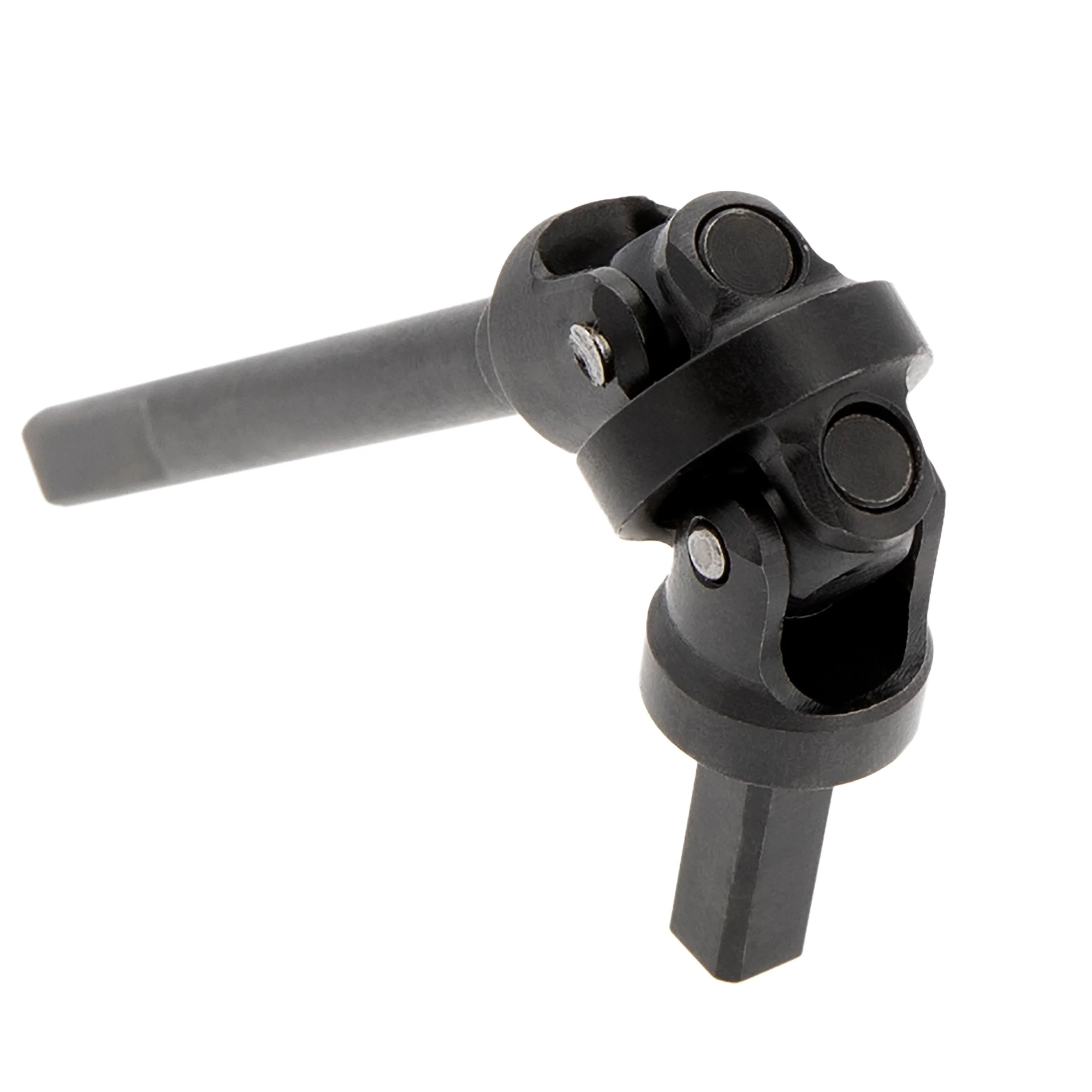

• - The 3-section CVD axle shaft features the transmission component called universal joint, the two shafts are connected via one U-shaped buckle to get a larger transmission angle for better flexibility and stability.

• - This 3-section structure is long-lasting to ensure the longer service life of the whole car axles.

• - Only for MEUS RACING Capra 1.9 UTB axles with Isokinetic 3-Section CVD axle shaft.
• US patent (Patent No.: US D1,052,393 S) Isokinetic 3-section CVD ensures that there are no jerks when turning at large angles, 52° max steering angle.

Note:

• 1. If your axle does not have the II logo, please purchase the V1 CVD.
• 2. If your axle does not have the II logo, it cannot be installed with V2 CVD.
• 3. If your axle has the II logo, you can use V1 CVD, but you need to buy thicker bearings.
• 4. These 2 versions of CVD don't work with the CHEAT CODE Capra 1.9 Isokinetic Axles Kit
• 5. The V1 CVD contains two 5 x 11 x 3 mm bearings. You need to replace the bearing in this position with a 5 x 11 x 3 mm bearing; the original one was 5 x 11 x 4 mm.

Package List:

• 2pcs × Front Axle CVD Shafts;

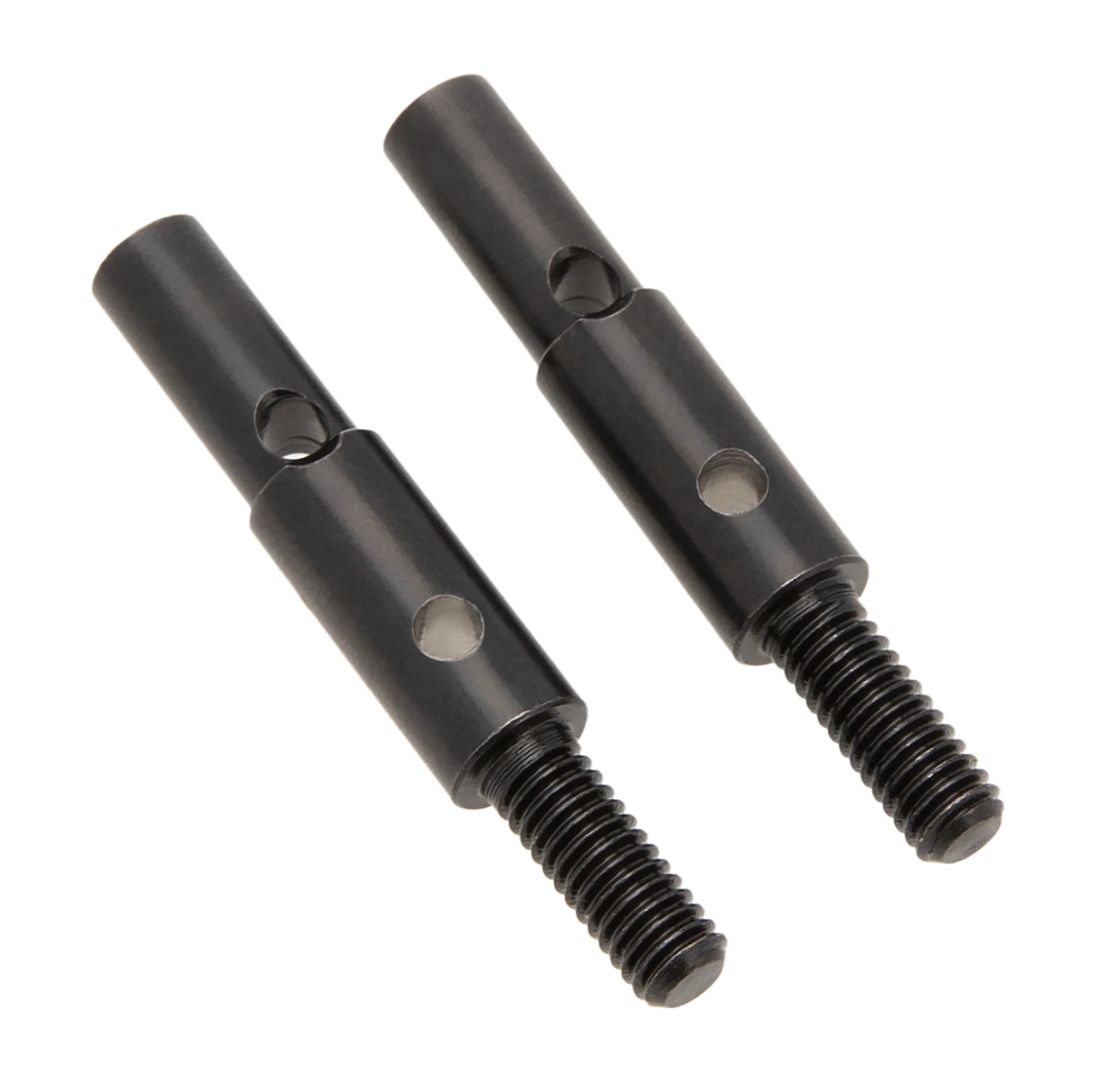

• 2pcs × Output Shafts.
