MEUS Racing 8.5KG Coreless High Torque Micro Servo & Brass Servo Mount & Steering Horn for TRX4M

MEUS Racing 8.5KG Coreless High Torque Micro Servo & Brass Servo Mount & Steering Horn for TRX4M

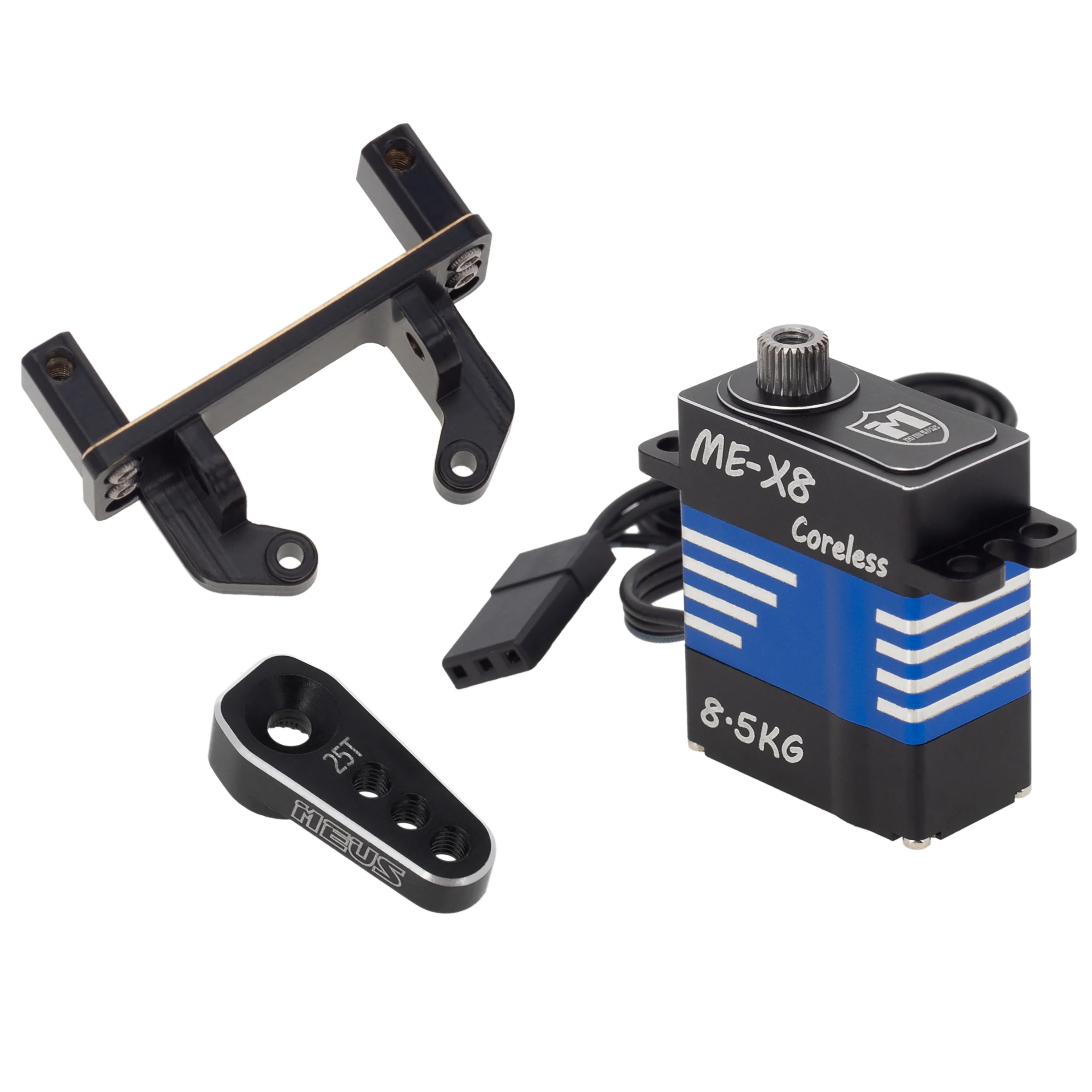

MEUS Racing Digital High-Torque 8.5KG Coreless High Torque Micro Servo with Adjustable Brass Servo Mount + Steering Horn for TRX4M 1/18 RC Crawler Upgrade Parts.

Key Features:

  • 1. High-precision metal gear coreless servo, with high torque, high sensitivity, stability, and low noise.

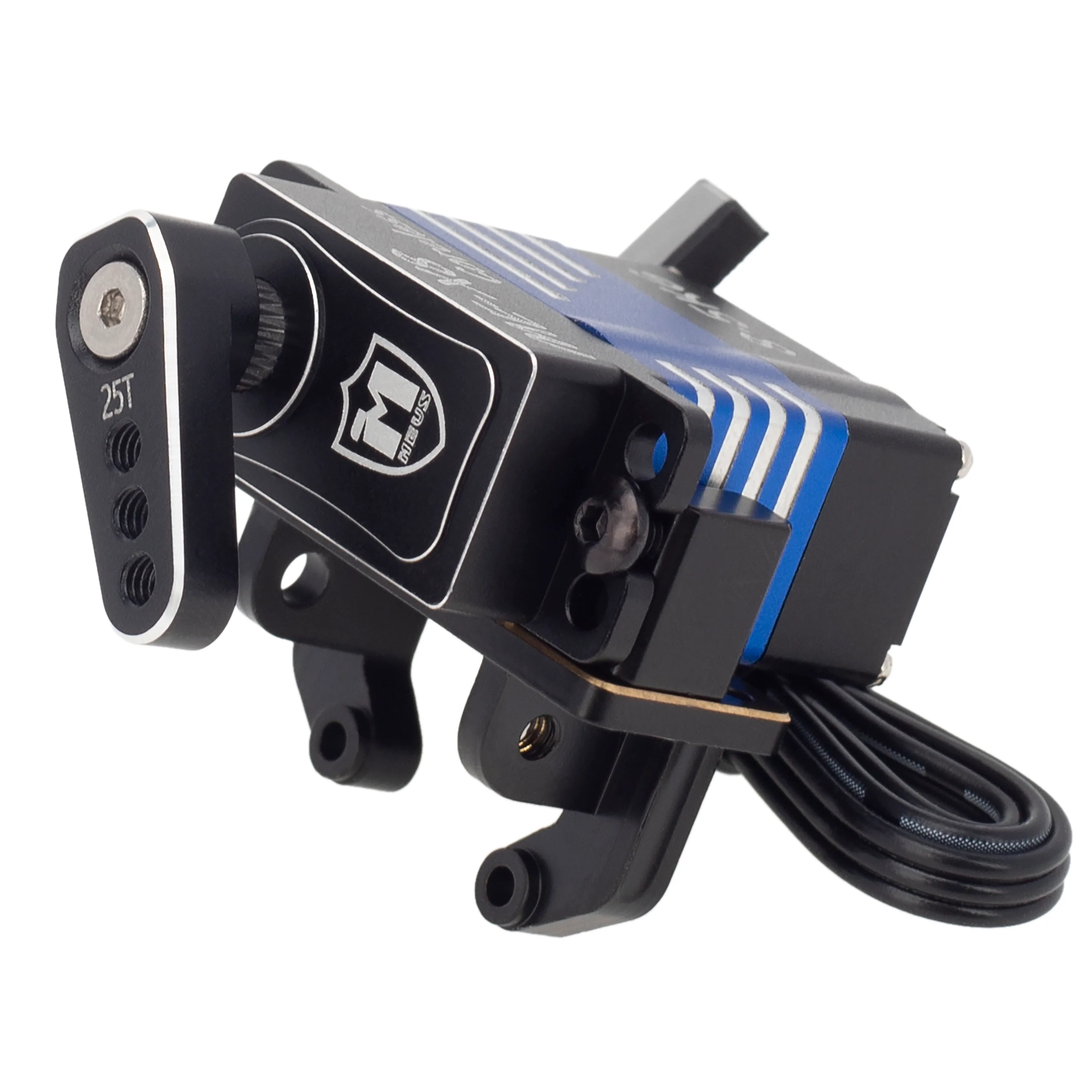

  • 2. Brass servo machine mounts to add weight to the front axle. It can also adjust the front and rear clearance of the servo.

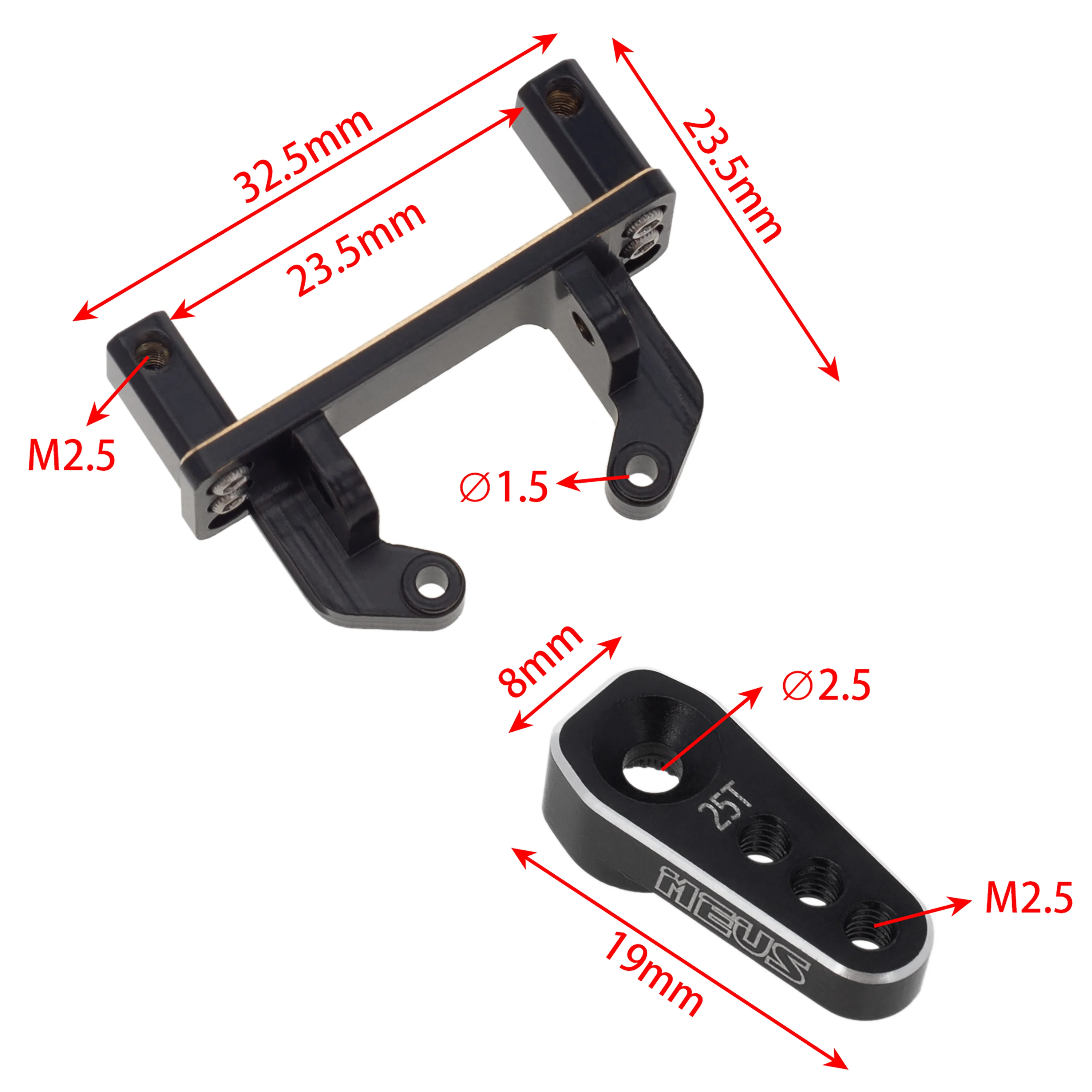

  • 3. By adjusting the servo mounting ears, the mounting distance of 3.5MM can be moved.

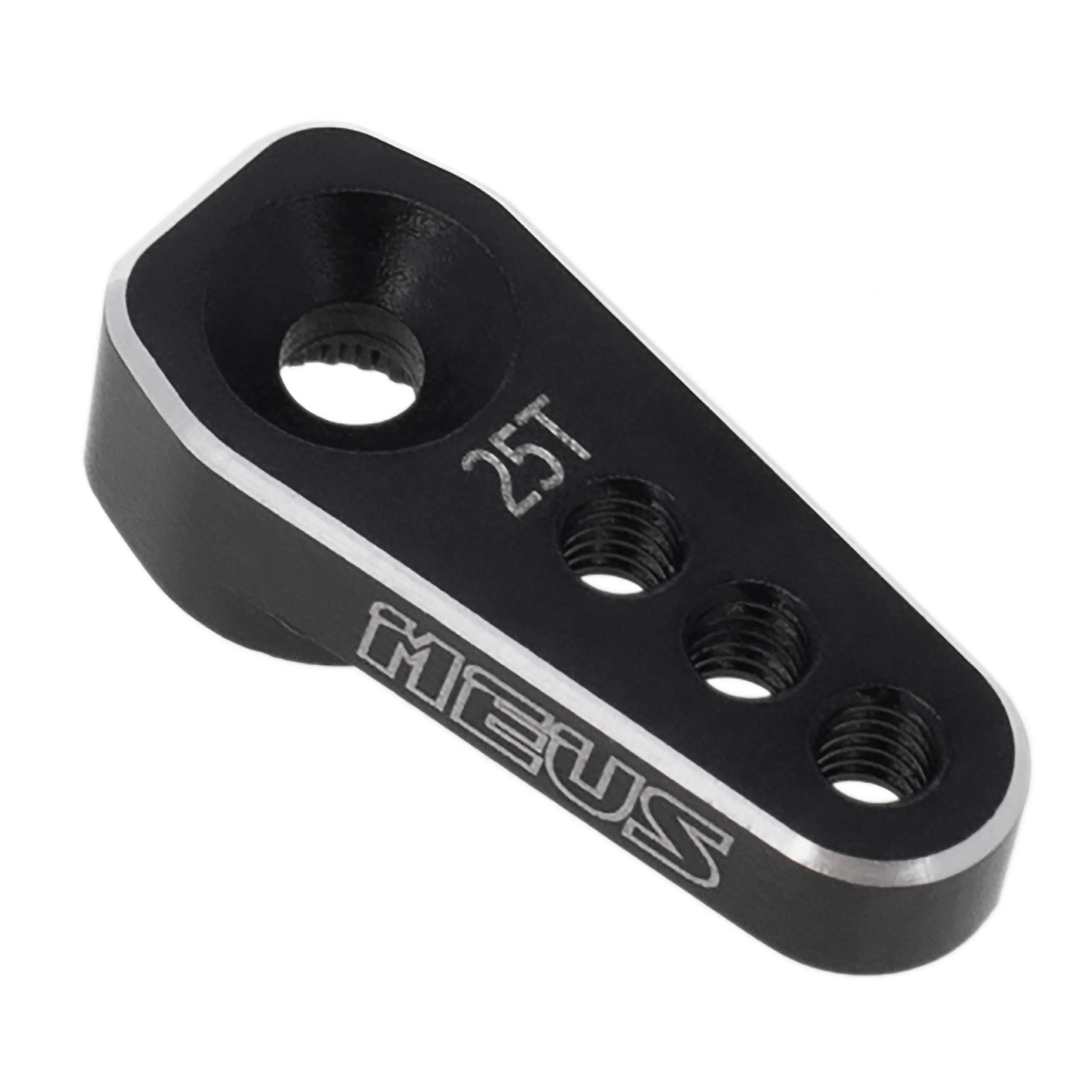

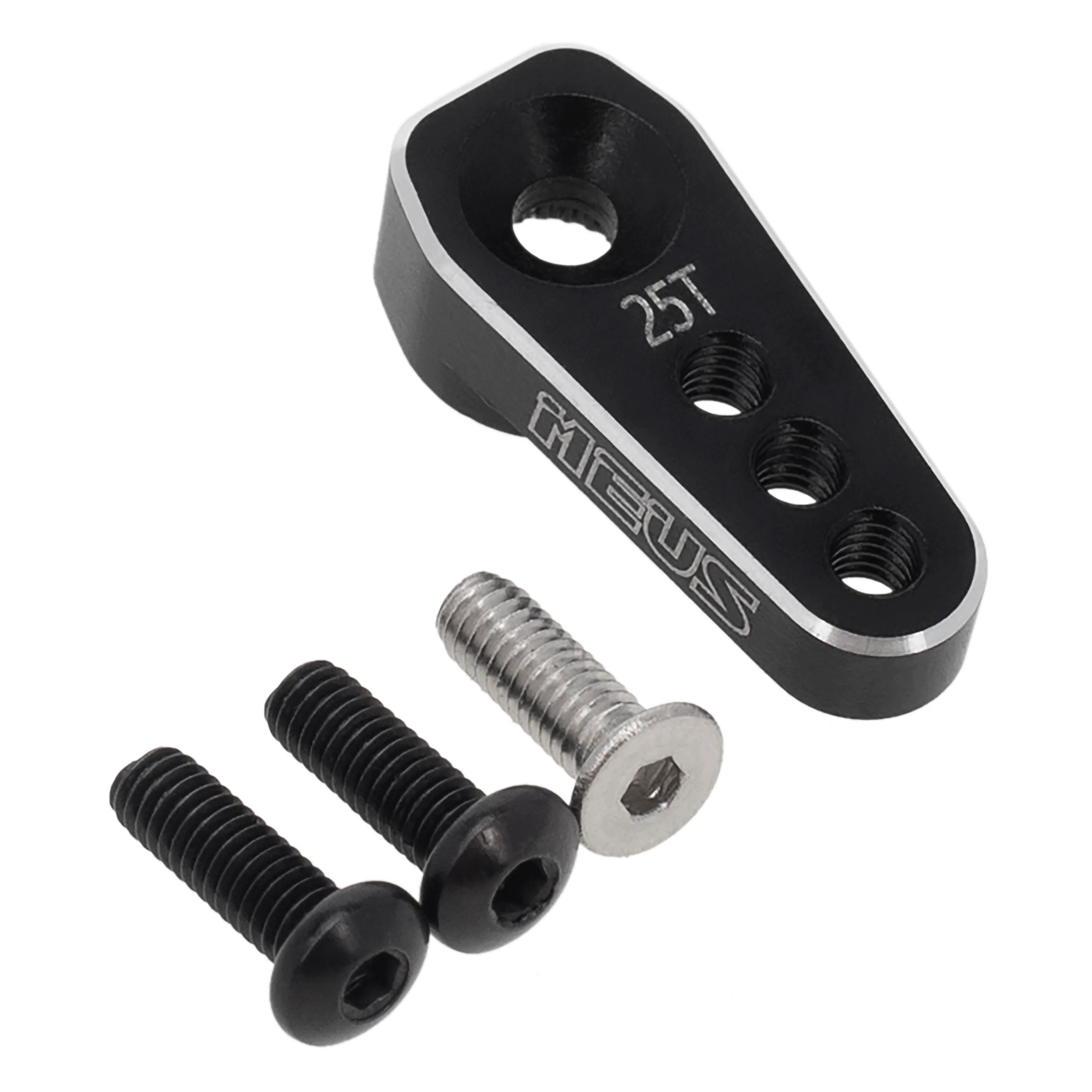

  • 4. Aluminum alloy servo horn, sturdy and durable

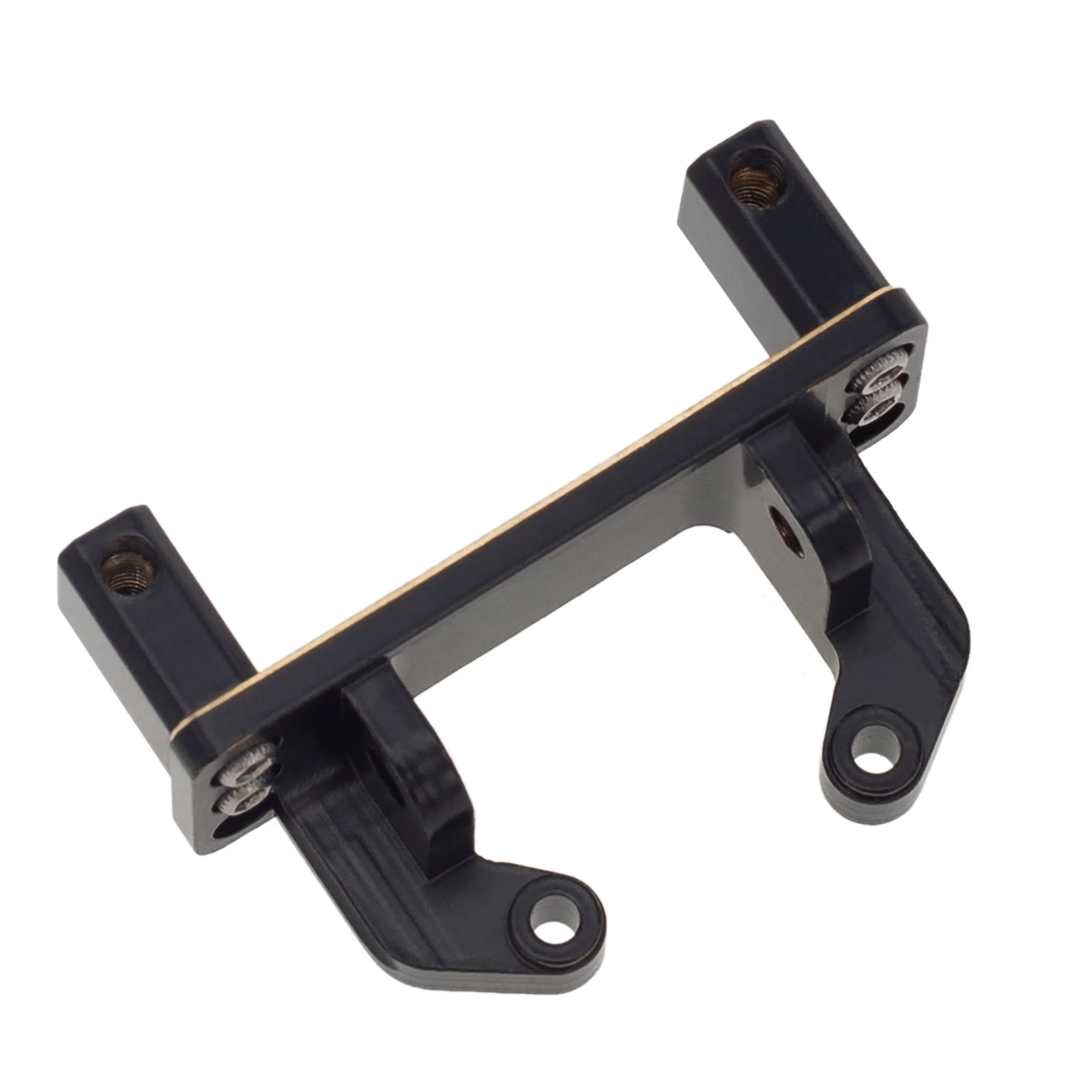

  • 5. The servo mount is made of brass, CNC machined and has an anodized black treatment, exquisite and durable.

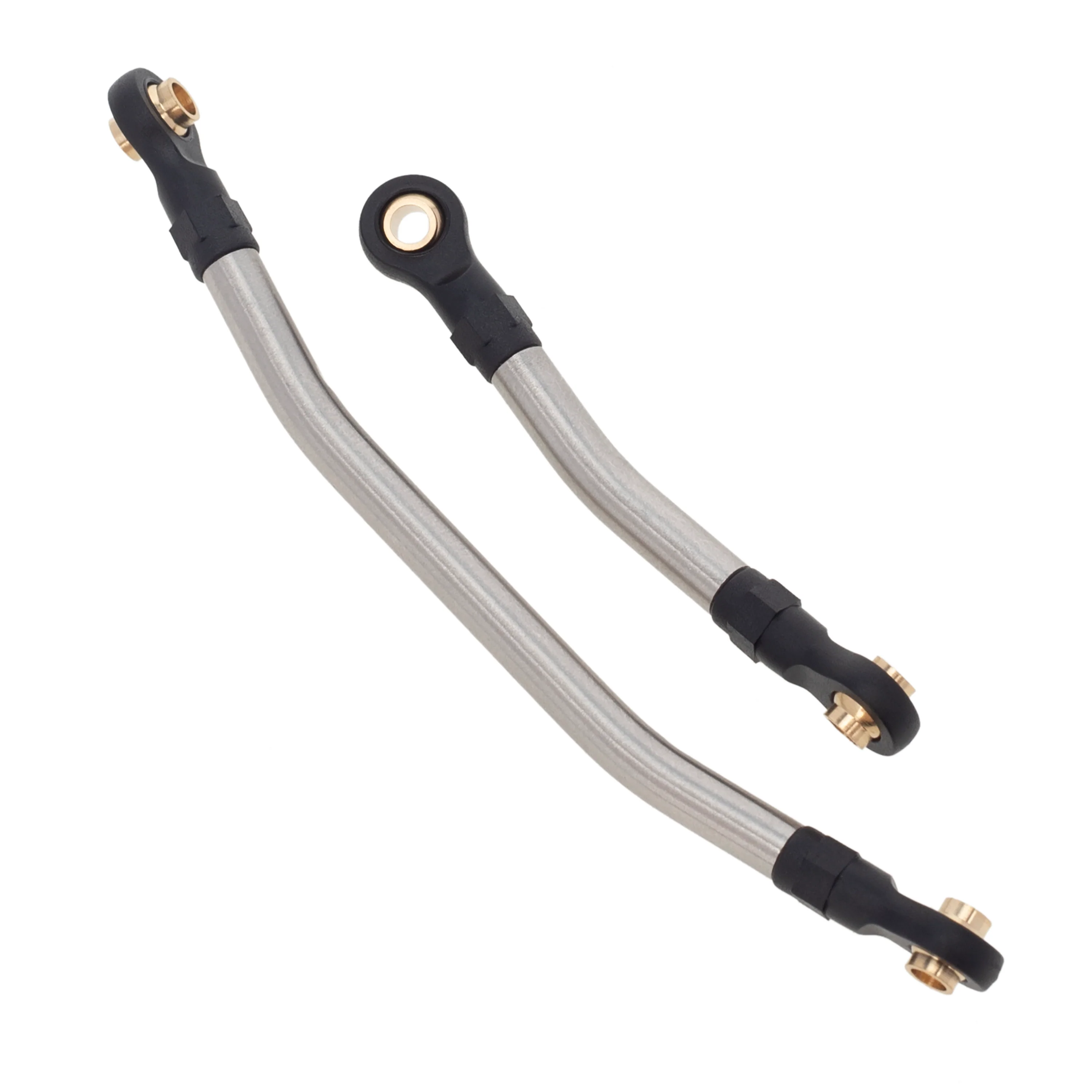

  • 6. Equipped with 2 stainless steel steering linkages; place the servo horizontally, it makes the TRX-4m's center of gravity lower.
  • 7. Adjustable servo forward and backward movement spacing, adjustable 3.5MM. and it is equipped with an aluminum alloy servo horn, suitable for high torque servos.
  • 8. Not applicable to the stock frame; suitable for TRX4M modified chassis, need to cut the original axle connecting rod seat before installation.

Specifications:

Product Number: ME-X8
Operating Voltage: 4.8~8.4VDC
Max. Torque-6.0V: ≥ 6 kg.cm
Max. Torque-7.4V: ≥ 7.5 kg.cm
Max. Torque-8.4V: ≥8.5 kg.cm
No Load Speed-6.0V: ≦0.07sec/60°
No Load Speed-7.4V: ≦0.06sec/60°
No Load Speed-8.4V: ≦0.058sec/60°
Operating Travel Angle: 90°+10°(500~2500 us)
Motor Type: Coreless motor
Horn Gear Spline: 25T/∅4.90mm
Gear Set Material: Metal gear
Weight：21.6+ 0.5g
Size：23*12*27mm

Packing List:

1 × 8.5KG servo;
1 × Servo horn;
1 × Brass servo mount.
