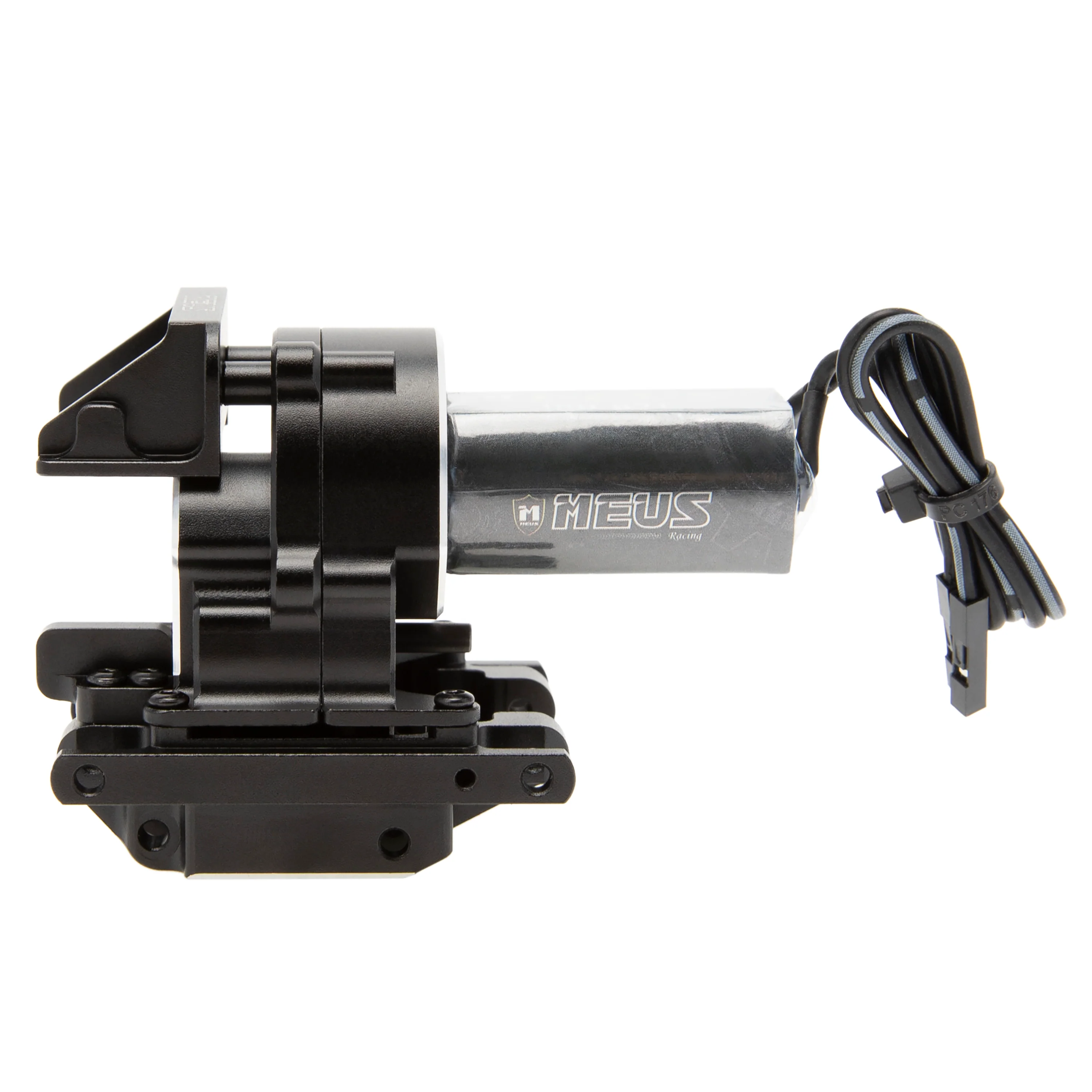

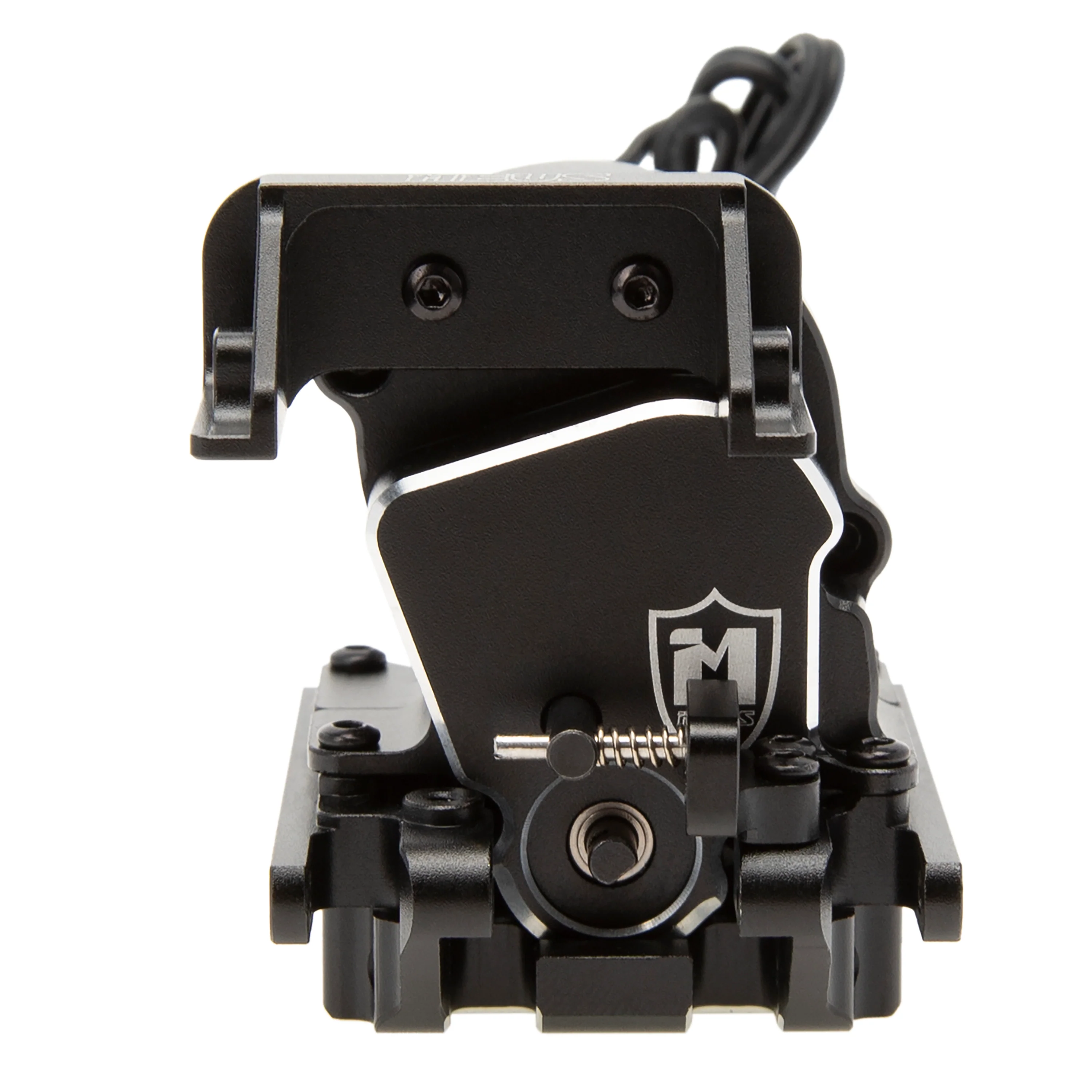

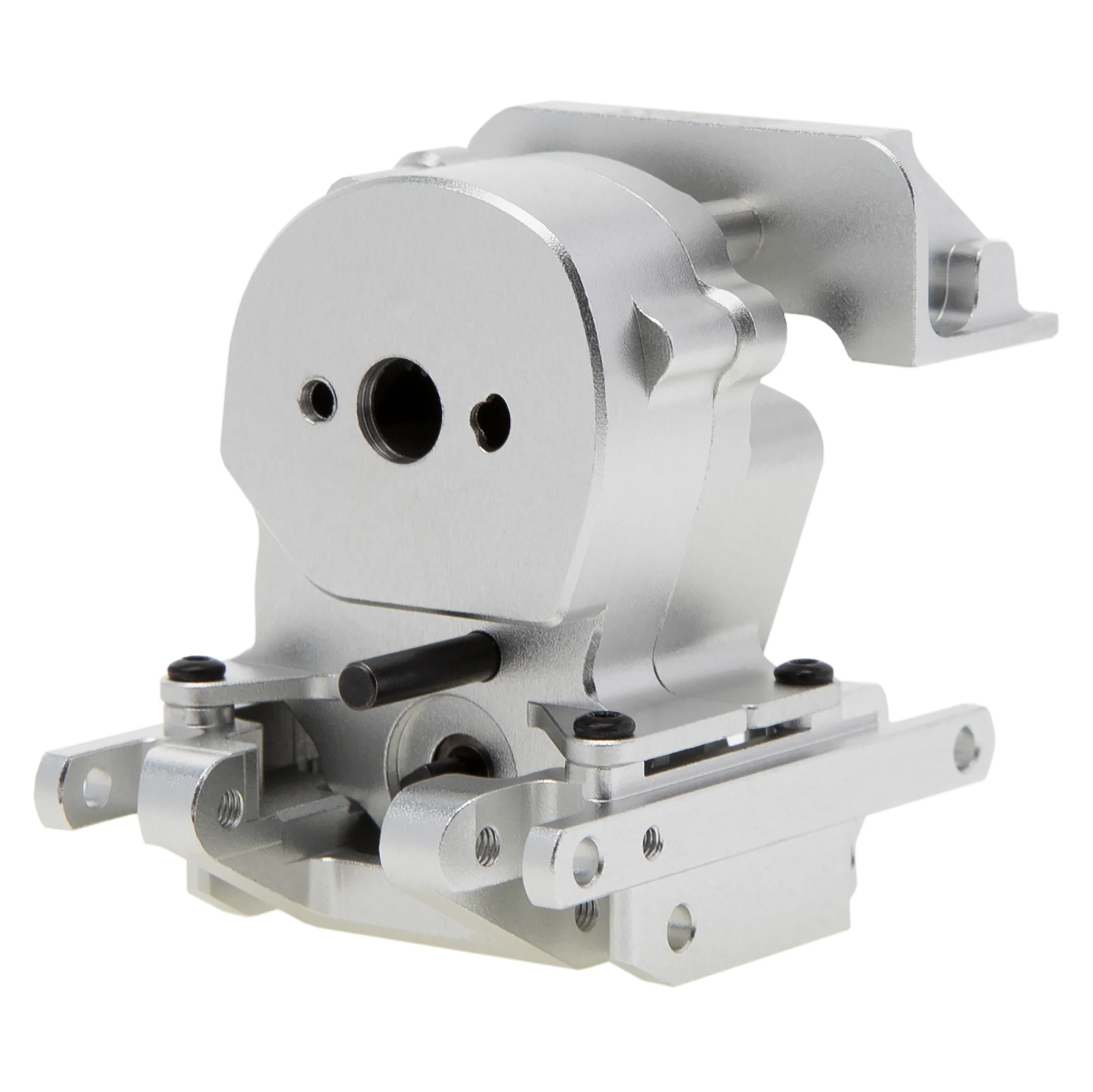

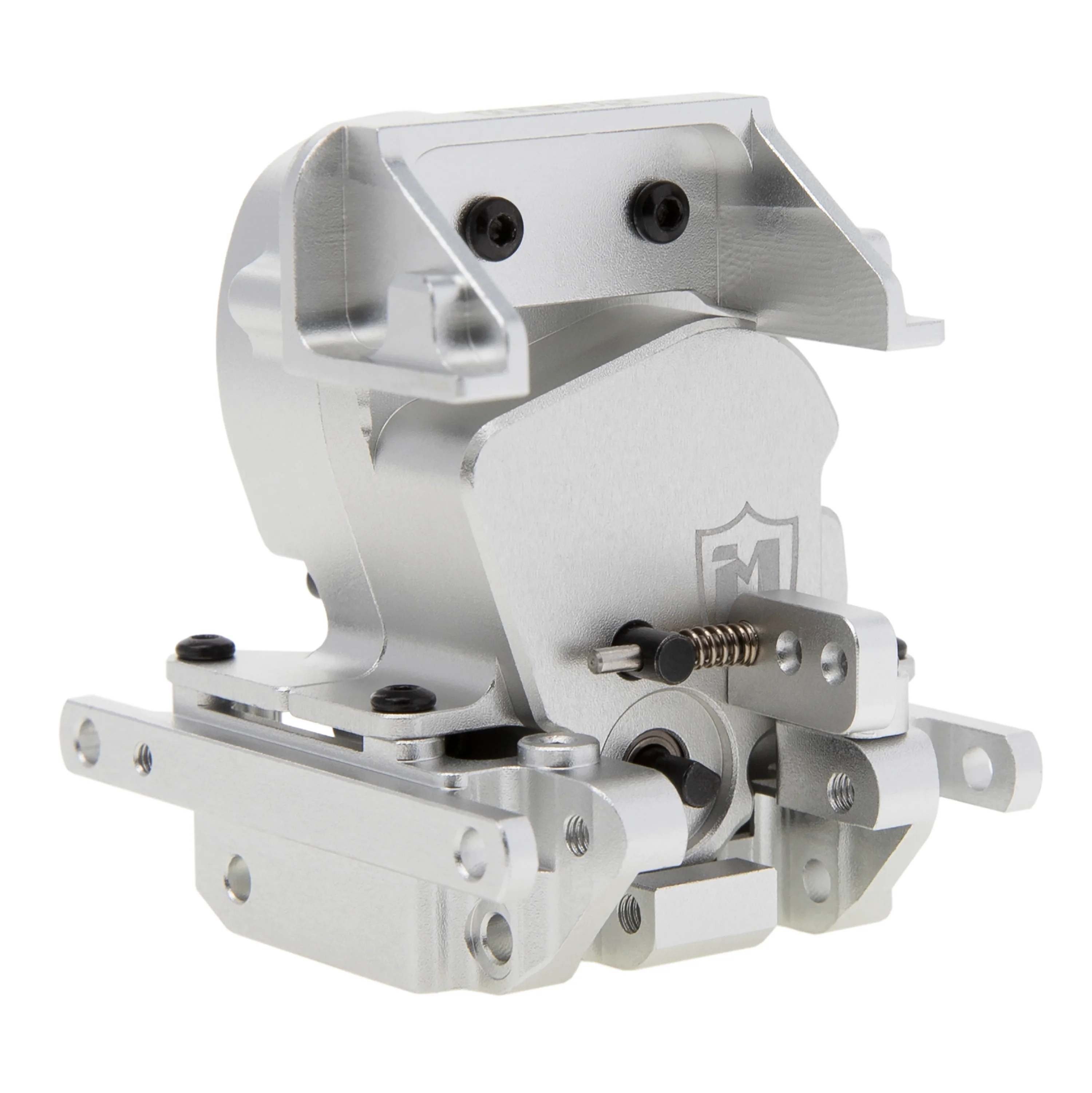

MEUS Racing TRX4M Transmission Gearbox With Dual Speed 15.7:1, 56.6:1 for TRAXXAS TRX4M 1/18 RC Crawlers Upgrade Parts

MEUS Racing Aluminum Alloy TRX4M Transmission Gearbox With Dual Speed 15.7:1 and 56.6:1 for TRAXXAS TRX4M 1/18 RC Crawlers Upgrade Parts.

Key Features:

• 1. Use high-quality aluminum alloy material and steel gears, surface oxidation treatment, and be sturdy and durable.

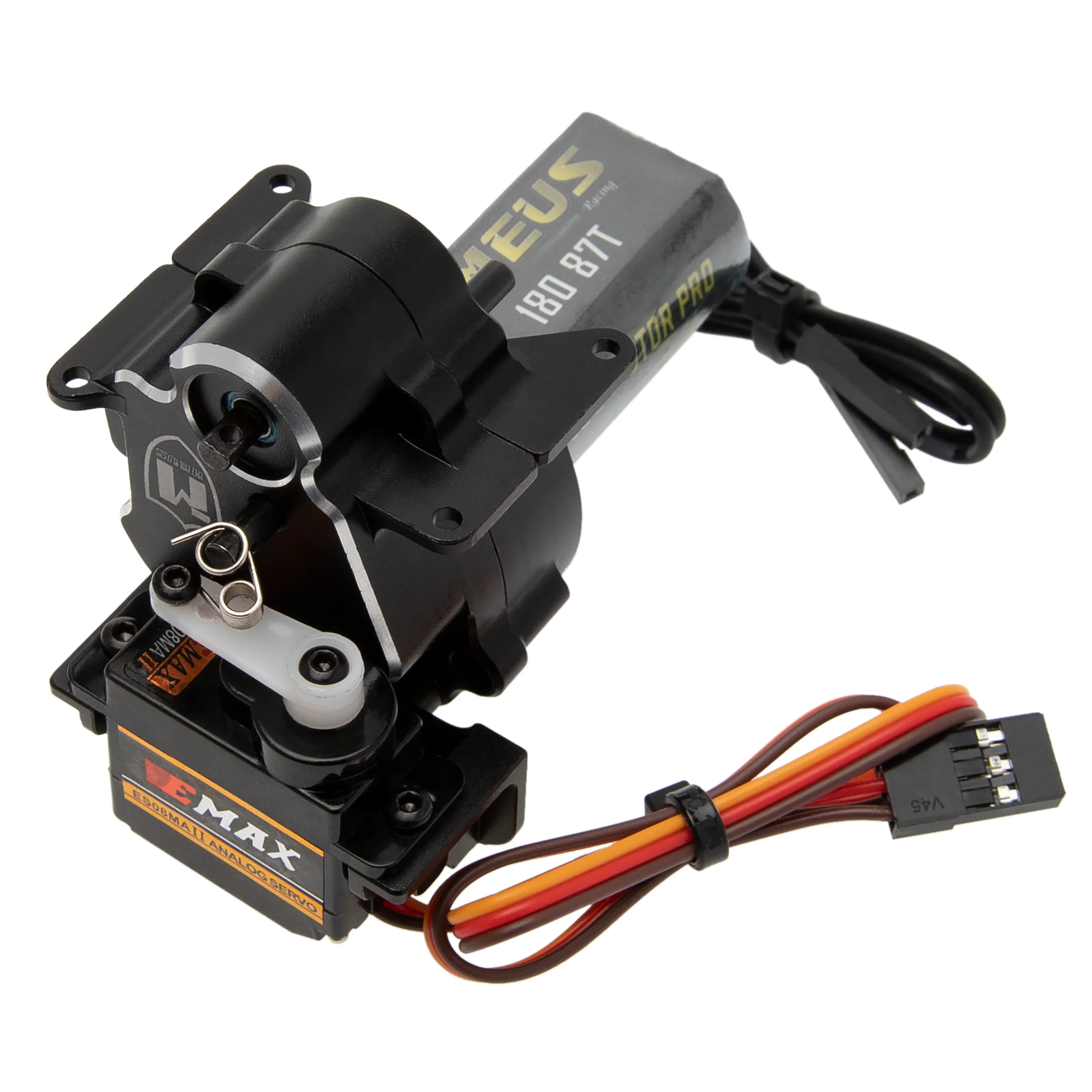

• 2. Control the servo through CH3 and manually switch gears to two programs. Use the CH3 control program. The original factory remote control does not work together.

• 3. High speed 15.7:1, and low speed 56.6:1 provide two crawling speeds, and can easily cope with various road conditions.

• 4. Suitable for the TRX4M original frame or other frames with large enough space.

• 5. The gearbox is suitable for 2mm motor shaft brushless motors.
• 6. This 2-speed transmission can work with the Injora LCG carbon fiber frame.
• 7. If the motor output shaft size is 2mm, it would work with this 2-speed transmission.

Specifications:

Bearing size: 6*3*2.5mm, outer diameter 6mm, inner diameter 3mm, thickness 2.5mm

Note: The TRX4M 2-speed transmission does not fit the MEUS ripper chassis and the MEUS MB18.

(Reason: Because the 2-speed gearbox's height is too high. The MB18 or ripper's cab cannot be placed into this gearbox. The cab needs to be removed and some cutting work needs to be done. So by default, it is not compatible.)

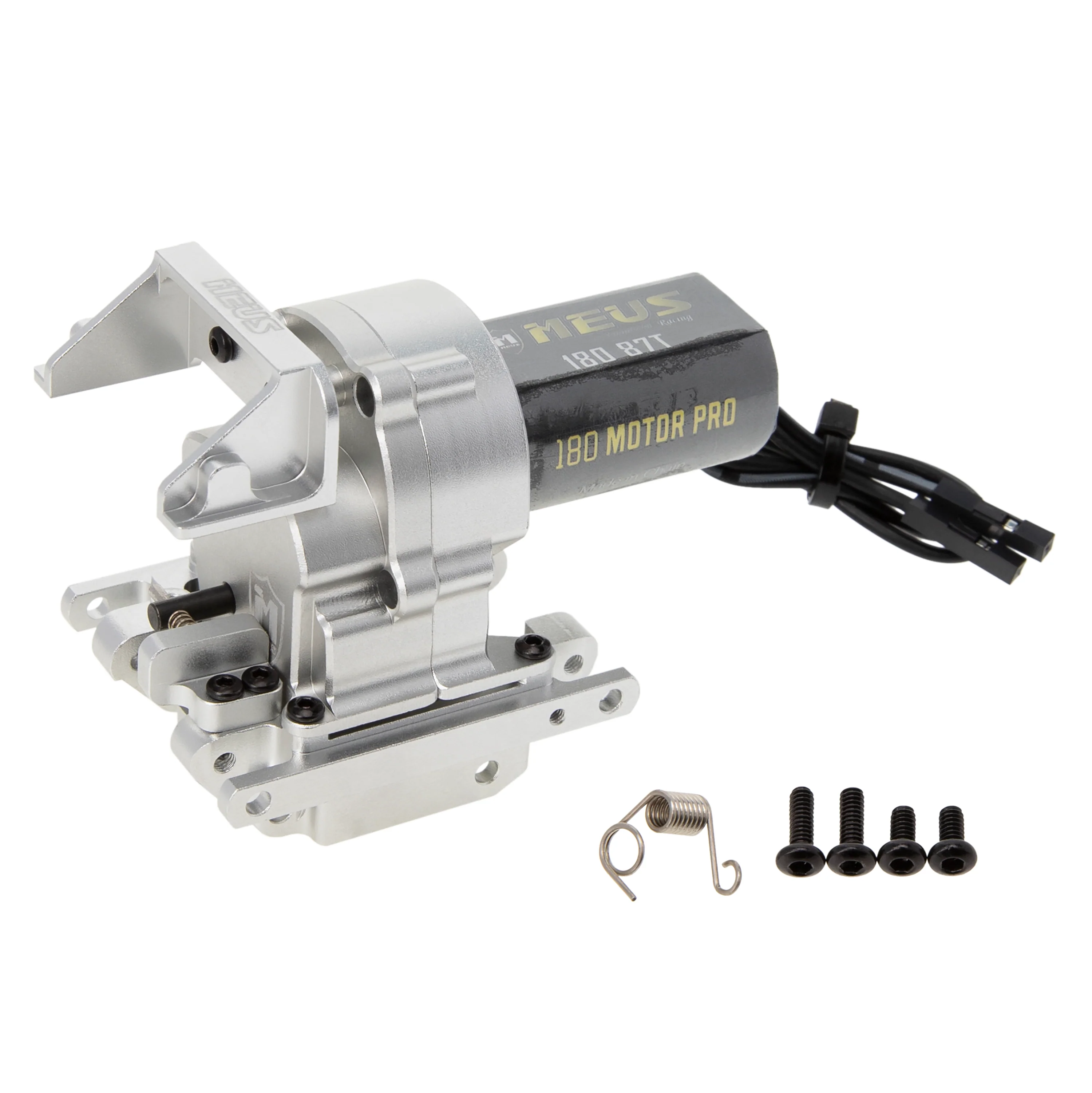

Package List

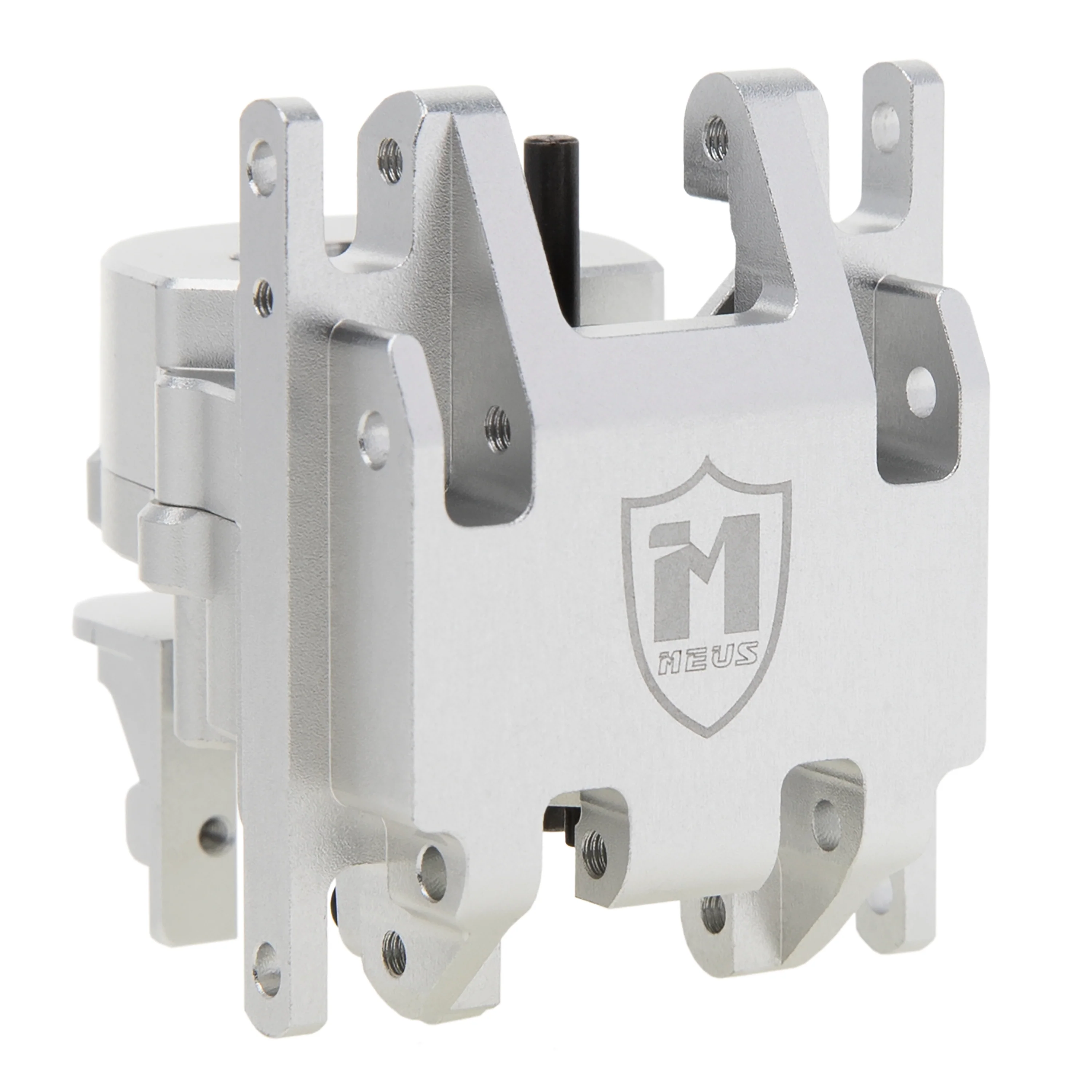

• 1 × gearbox with Skid plate

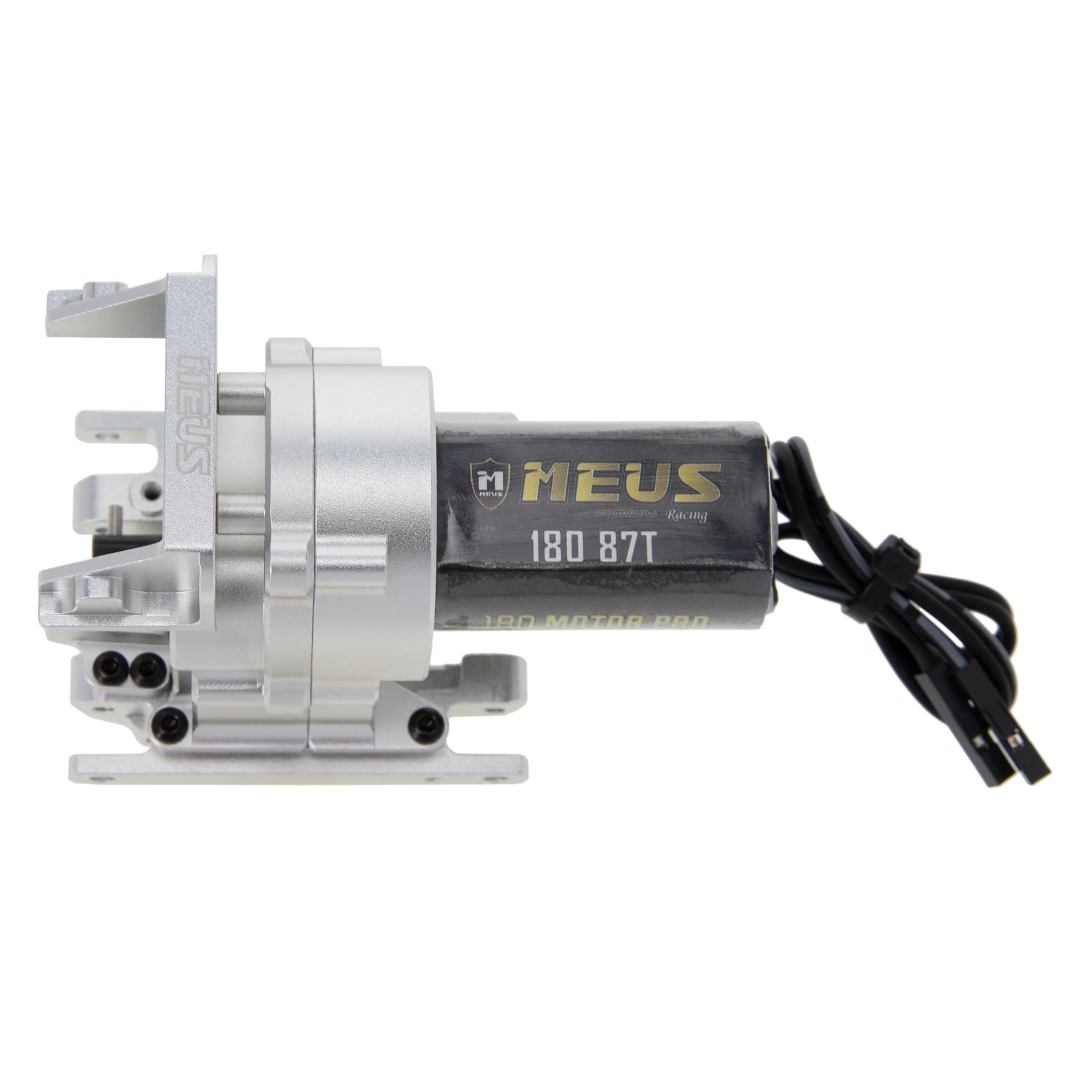

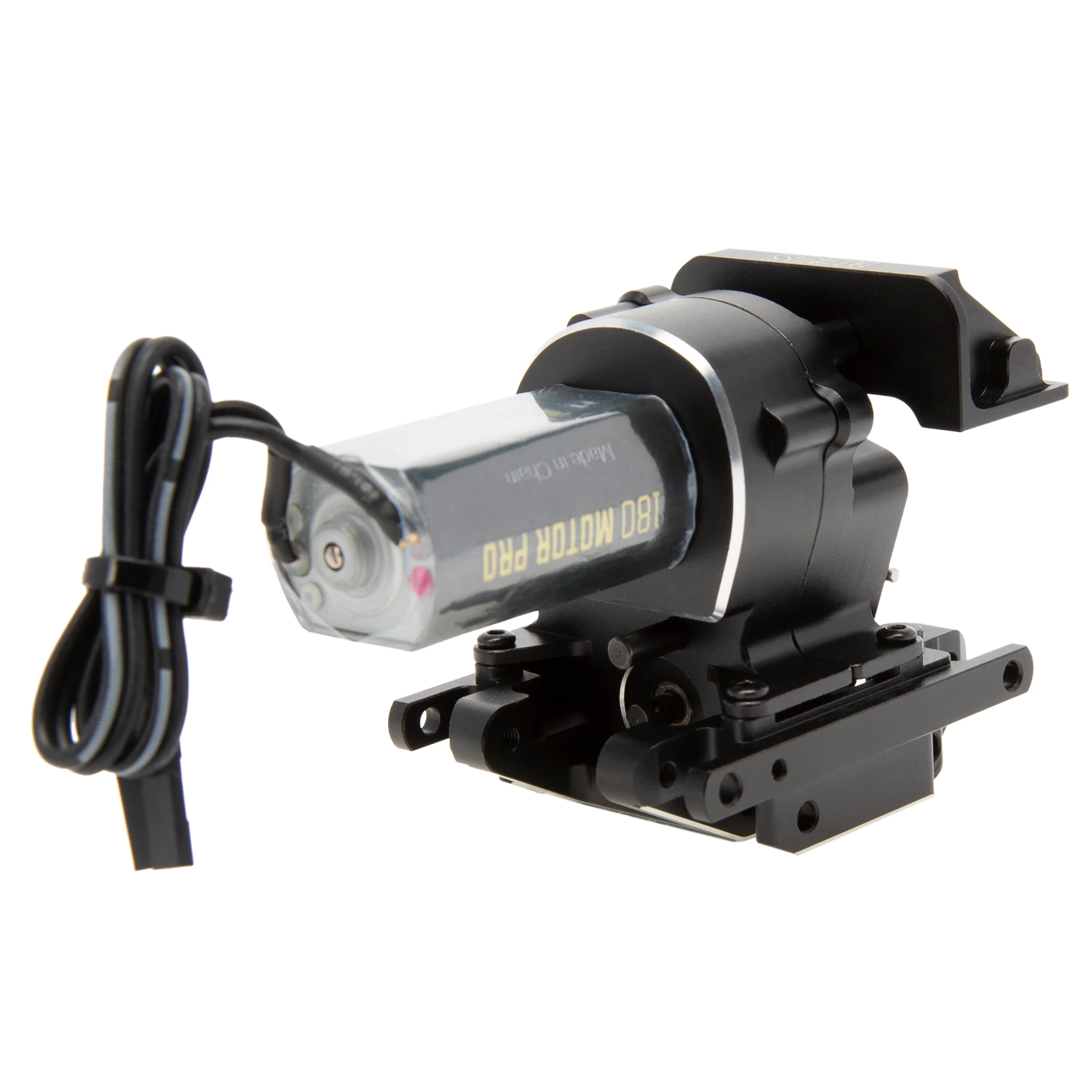

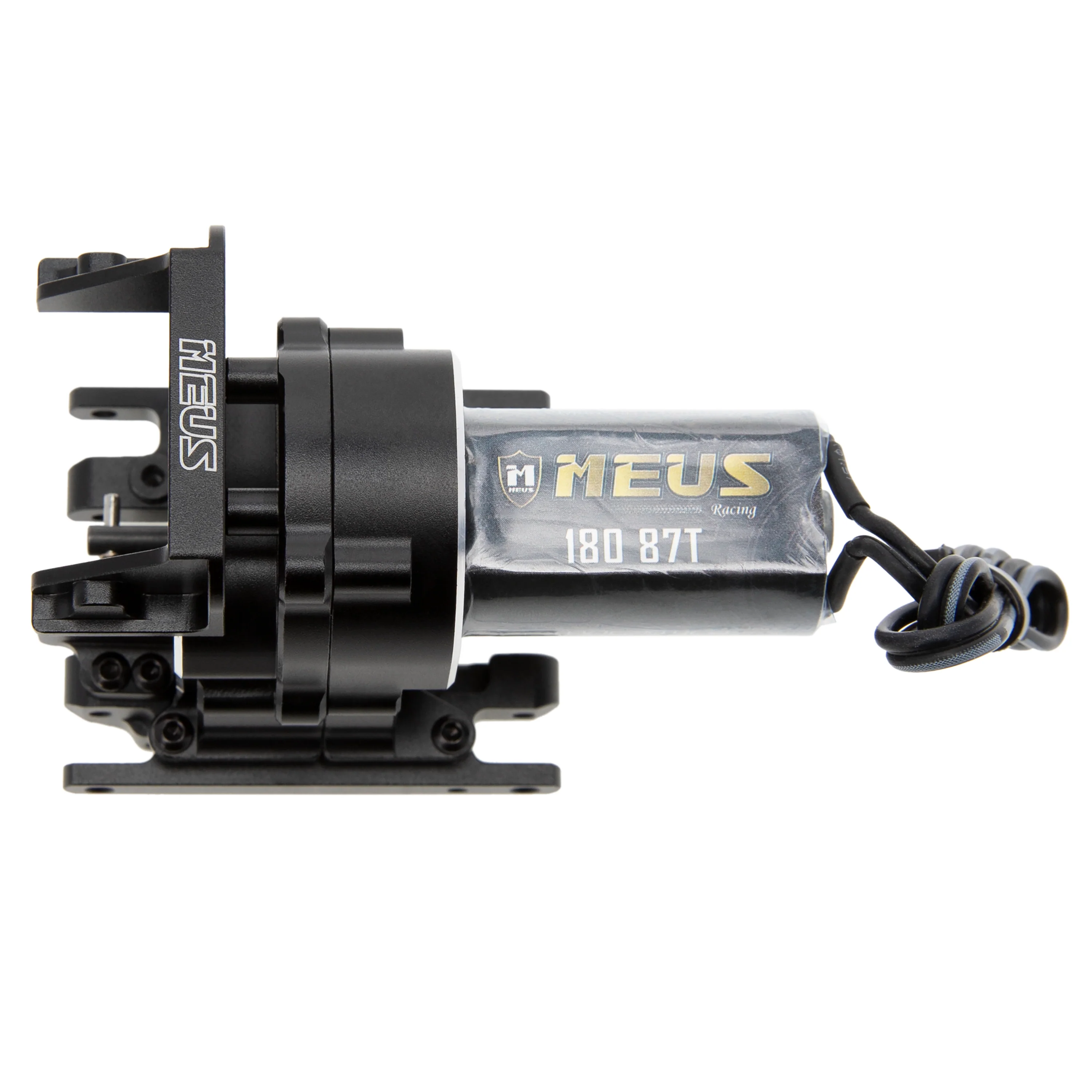

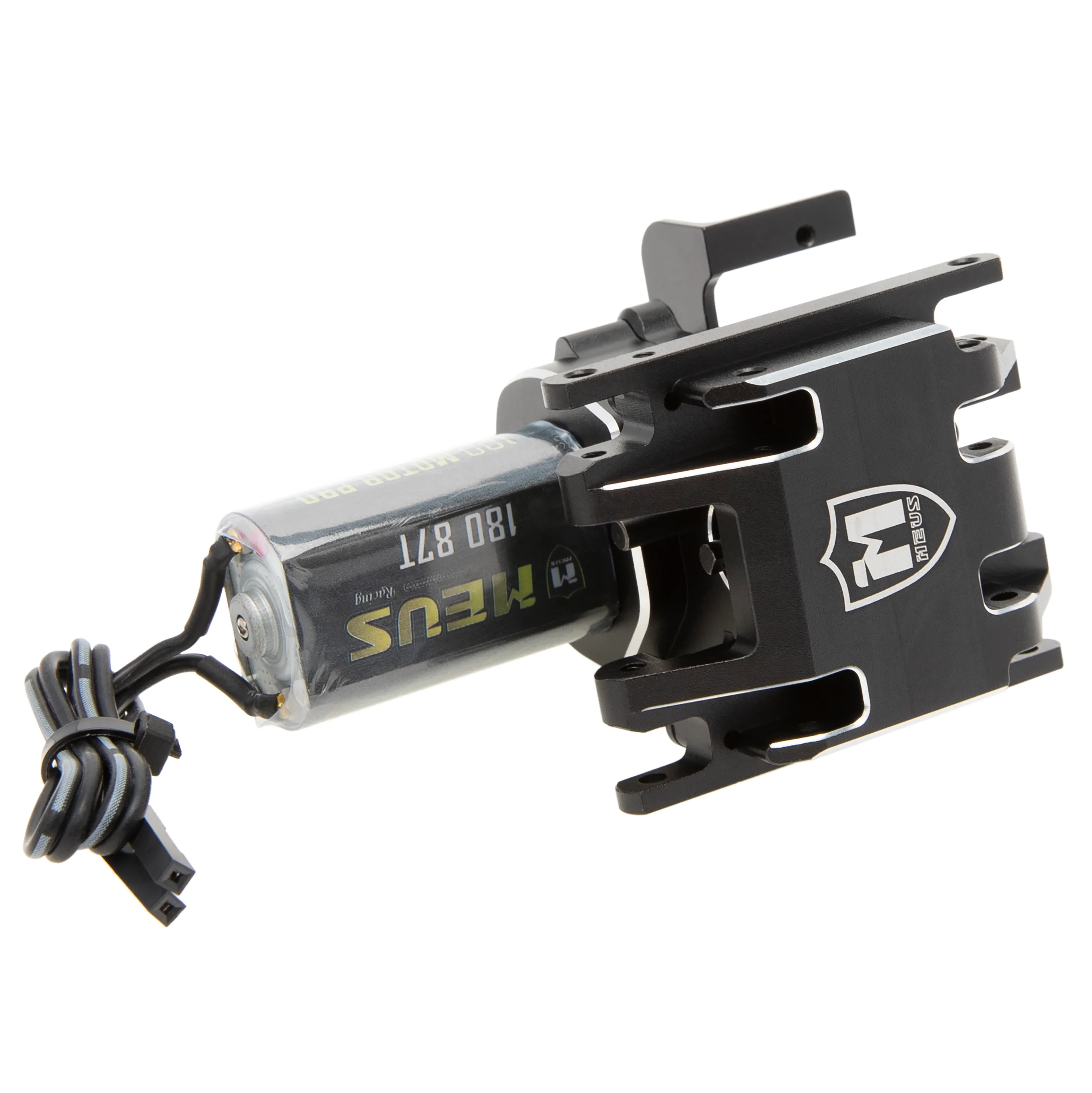

• 1 × motor 87T(option)

Note:

1. This Dual Speed Transmission doesn't work with a 370 motor, because the installation hole positions differ.

2. The Dual Speed Transmission also works with ME-8B transmitters and receivers.

3. For the TRX4M IFS kit and MB18, there is no issue with the installation hole position. However, after installation, the brush motor cannot be installed due to the need for shorter motors, as this would affect the steering structure. At the same time, a lot of cutting is required for the frame MB18. The compatibility is not very good.

Installation instructions

TRX4M Transmission Gearbox With Dual Speed 15.7:1, 56.6:1
